Kia
›
2016
›
Sorento L
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System - 2.4L
›
Shift Cable
›
Components And Components Location
›
Components
Components And Components Location: Components

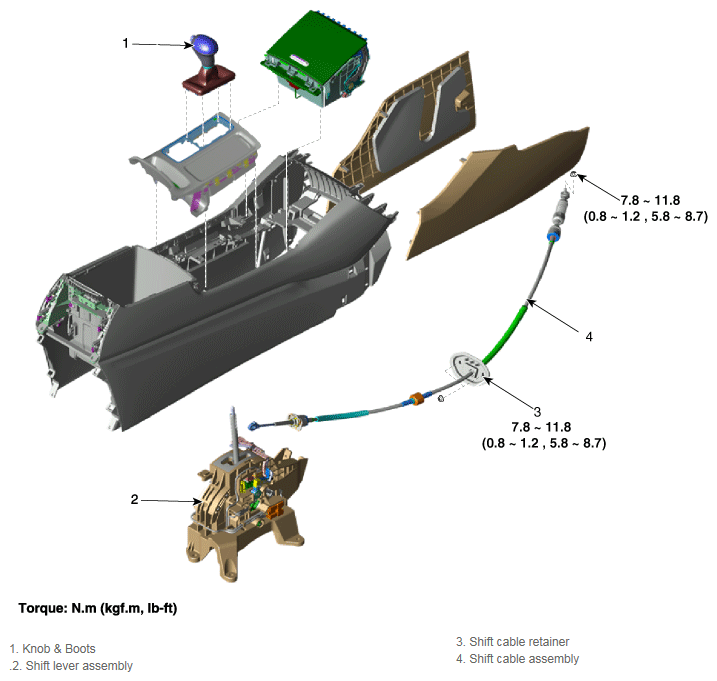

Fig 1: Shift Cable Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
