Kia
›
2016
›
Sorento L
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System - 2.4L
›
Transaxle Oil Temperature Sensor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

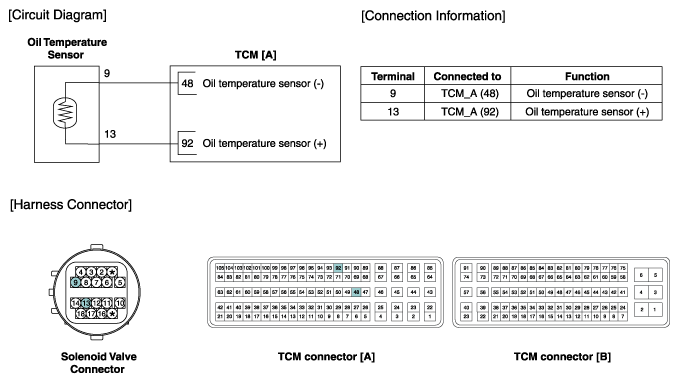

Fig 1: TCM And Oil Temperature Sensor Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
