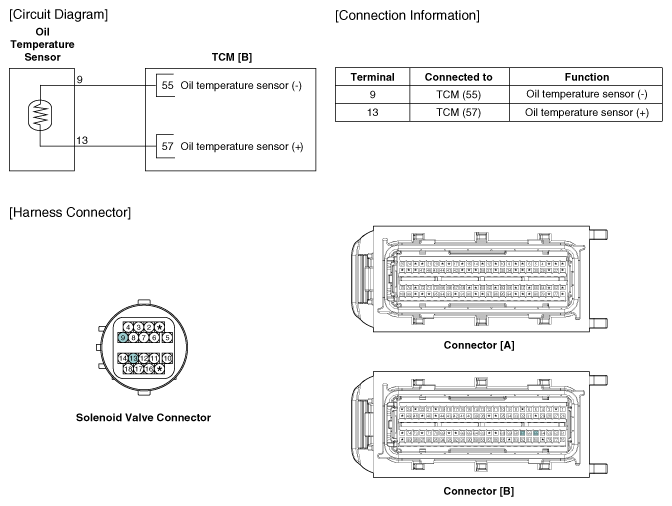

Home › Kia › 2016 › Sorento SX, 4WD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 3.3L › Transaxle Oil Temperature Sensor › Schematic Diagrams › Circuit Diagram
