Engine Control System - 3.3L
›
CVVT Oil Control Valve (OCV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

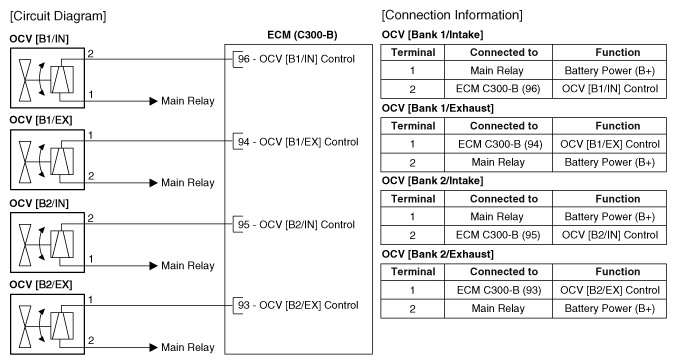

Fig 1: Continuous Variable Valve Timing (CVVT) System Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
