Engine Control System - 3.3L
›
Injector Drive Box (IDB)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

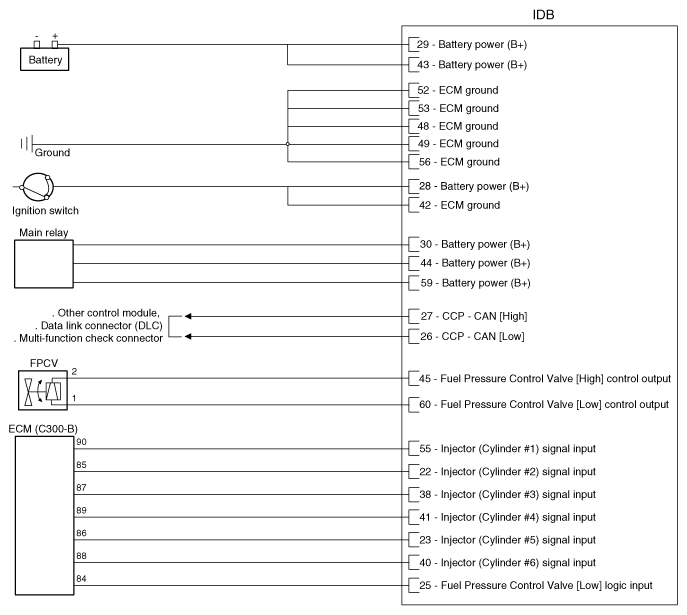

Fig 1: Injector Drive Box Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

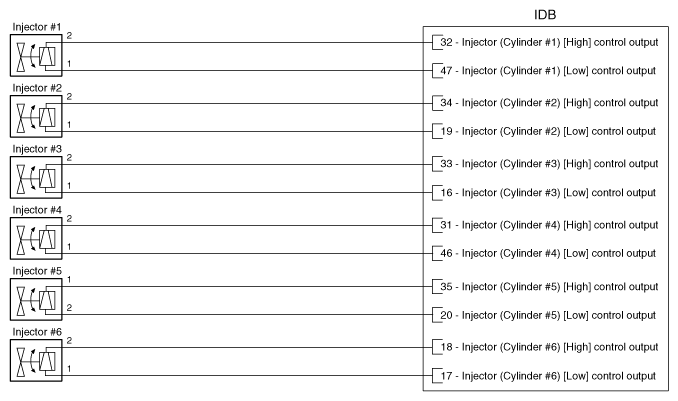

Fig 2: Injector Drive Box Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
