Sorento SX, FWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 3.3L
›
Injector
›
Schematic Diagrams
›

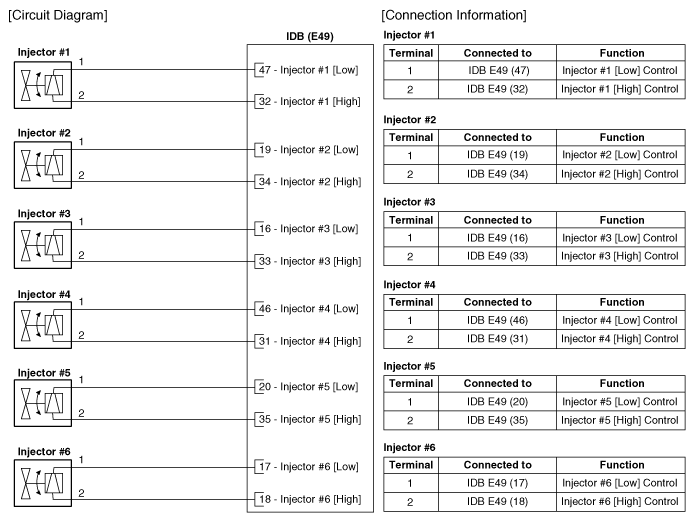

Circuit Diagram
Circuit Diagram
Fig 1: Solenoid-Operated Valve Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
