Home › Kia › 2016 › Soul ! › Repair and Diagnosis (Single Page) › Electrical › Charging Systems › Charging System - 2.0L › Alternator › Components And Components Location › Components

Components And Components Location: Components

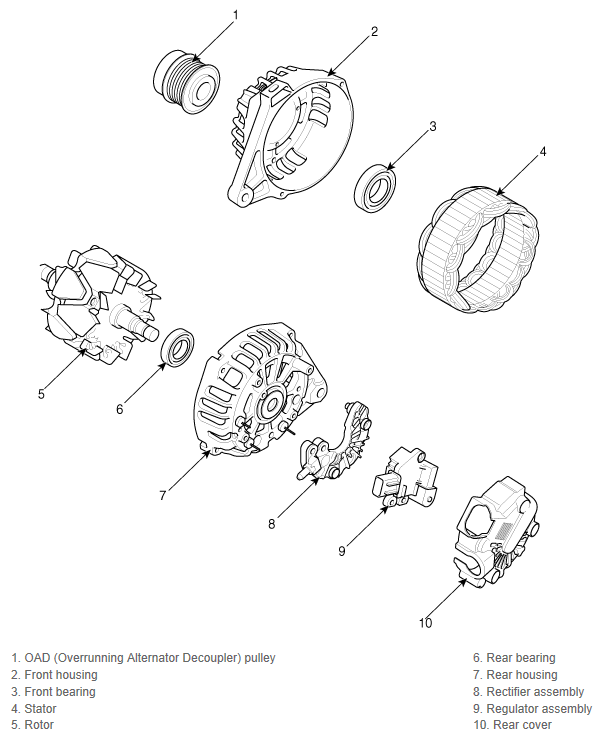

Fig 1: Alternator Exploded View
G11954729Courtesy of KIA MOTORS AMERICA, INC.
