Circuit Diagram: (A/T)

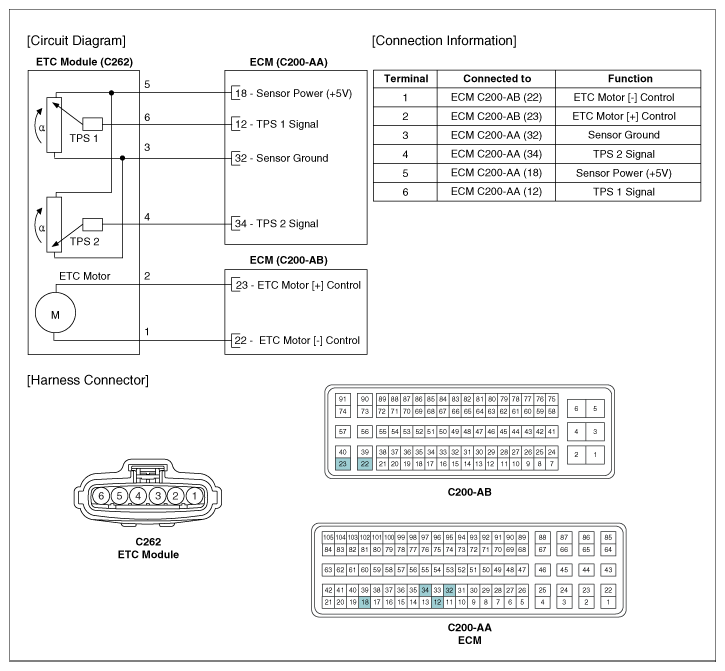

Fig 1: Electronic Throttle Control Module Connector (A/T)
G11955490Courtesy of KIA MOTORS AMERICA, INC.
