Circuit Diagram: (A/T)

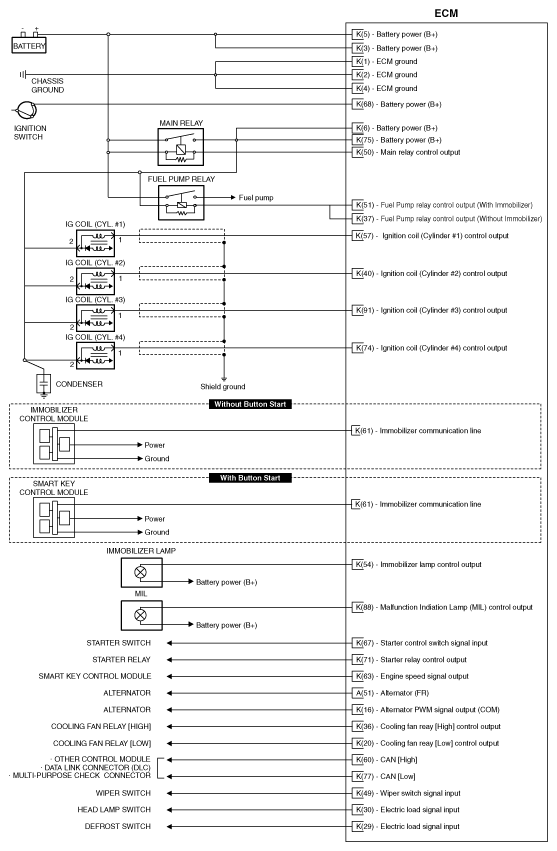

G11955478Courtesy of KIA MOTORS AMERICA, INC.

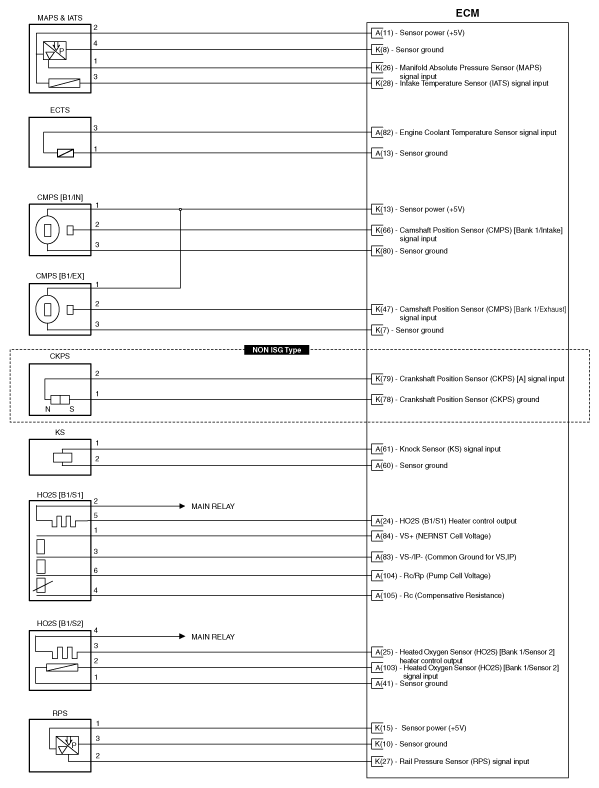

G11955479Courtesy of KIA MOTORS AMERICA, INC.

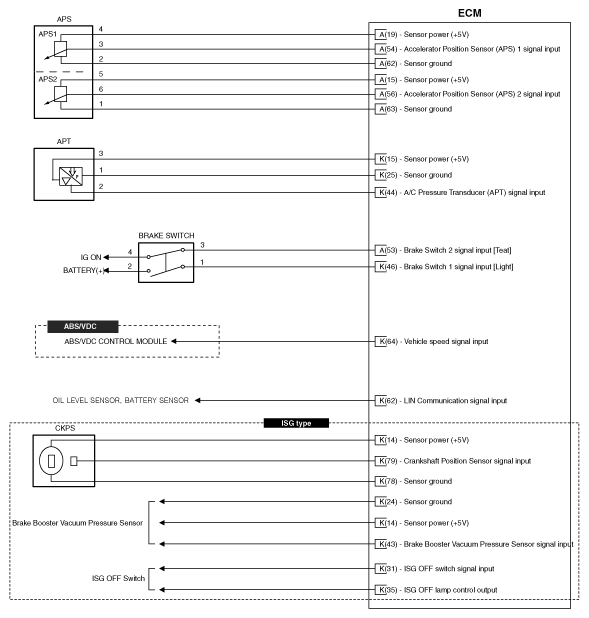

G11955480Courtesy of KIA MOTORS AMERICA, INC.

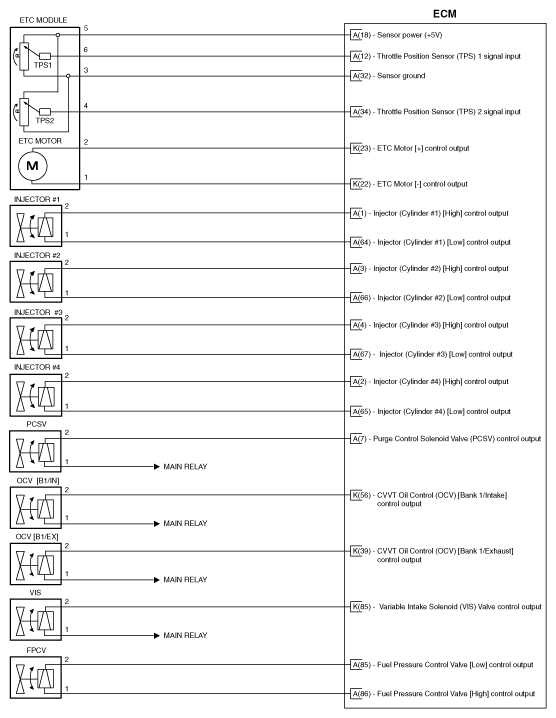

G11955481Courtesy of KIA MOTORS AMERICA, INC.
