Engine Control System - 2.0L
›
Fuel Tank Pressure Sensor (FTPS)
›
Schematic Diagrams
›
Circuit Diagram
›
(M/T)

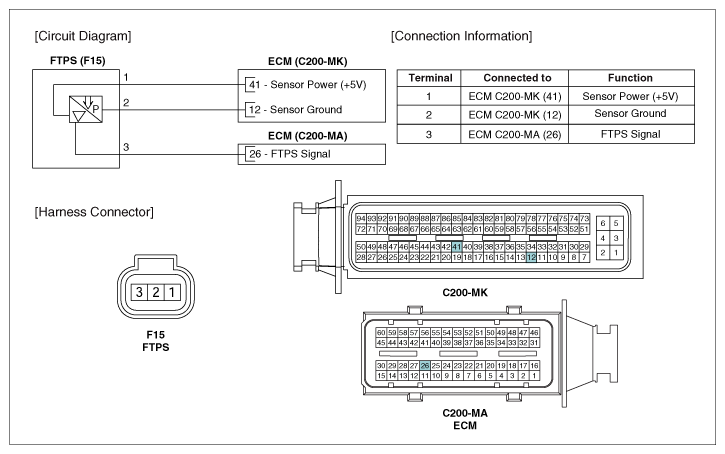

Circuit Diagram: (M/T)
Fig 1: Fuel Tank Pressure Sensor Connector (M/T)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
