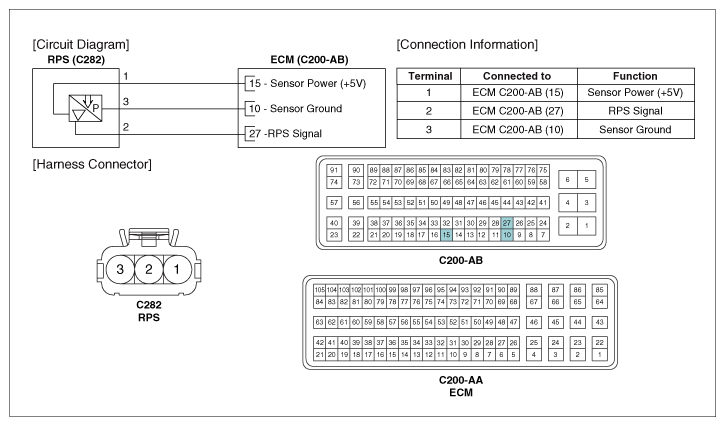

Home › Kia › 2016 › Soul ! › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Rail Pressure Sensor (RPS) › Schematic Diagrams › Circuit Diagram › (A/T)
