System Inspection

■ Resetting Adaptive Values

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "OFF".
3. Select the "VEHICLE S/W MANAGEMENT " for related DTC with KDS/GDS.

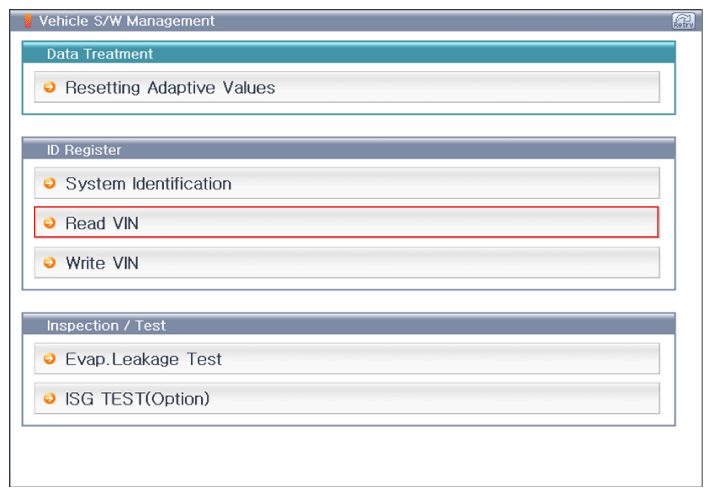

   Fig 1: Scantool Display - Select Read VIN

   Courtesy of KIA MOTORS AMERICA, INC.

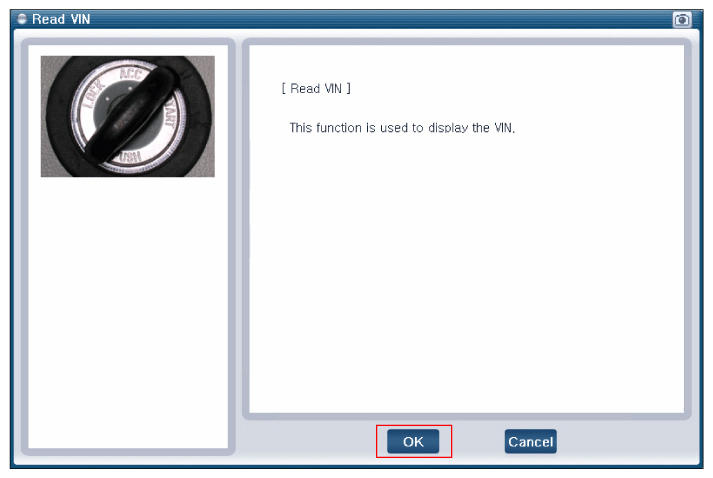

   Fig 2: Scantool Display - Press OK Button (Ignition ON & Engine OFF)

   Courtesy of KIA MOTORS AMERICA, INC.

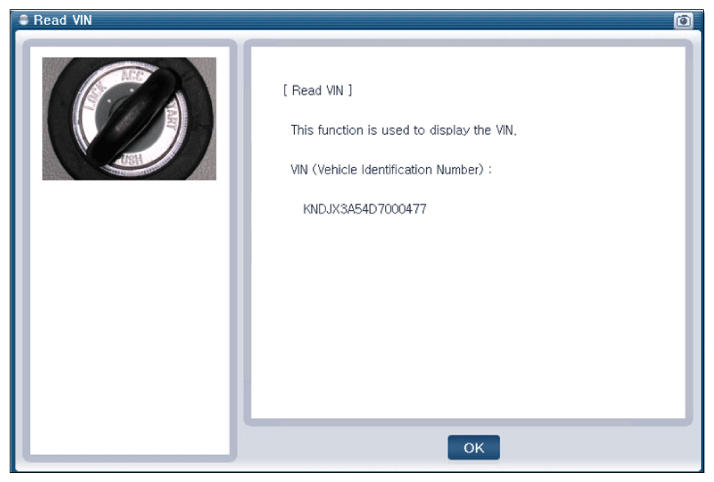

   Fig 3: Scantool Display - Final Screen Of Read VIN

   Courtesy of KIA MOTORS AMERICA, INC.

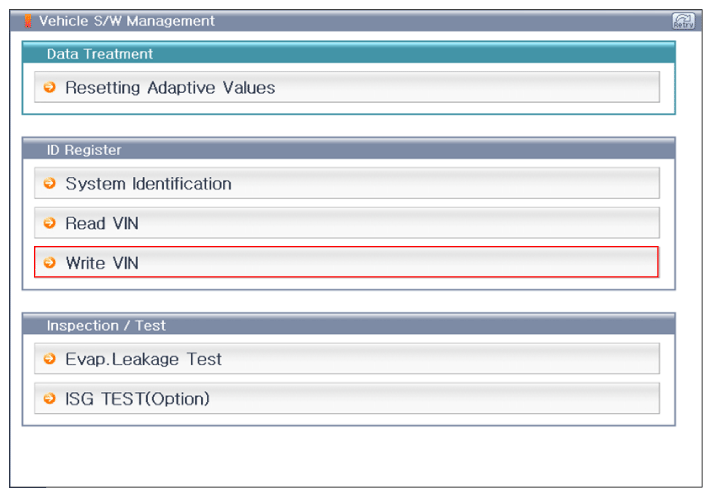

   Fig 4: Scantool Display - Select Write VIN

   Courtesy of KIA MOTORS AMERICA, INC.

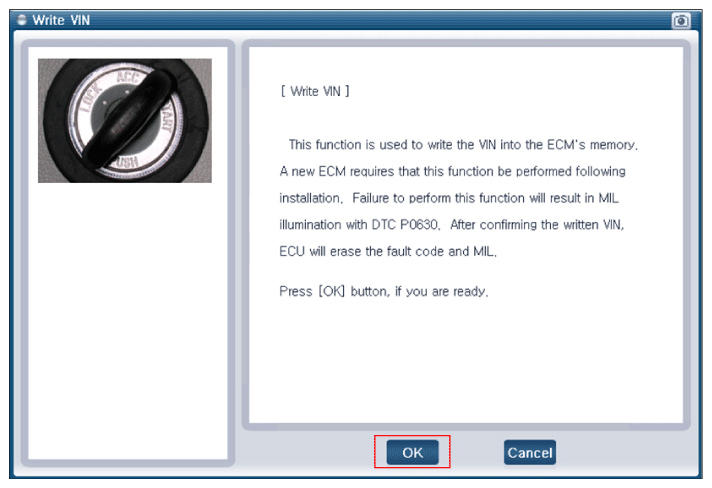

   Fig 5: Scantool Display - Press OK Button (Ignition ON & Engine OFF)

   Courtesy of KIA MOTORS AMERICA, INC.

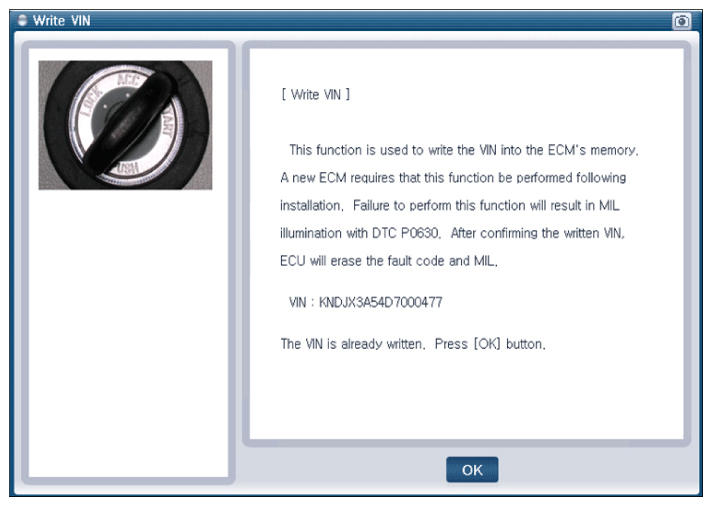

   Fig 6: Scantool Display - Final Screen Of White VIN

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Read VIN" & "Write VIN" has completed properly, press "OK" button and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
