Signal Waveform

G11955817Courtesy of
G11955818Courtesy of

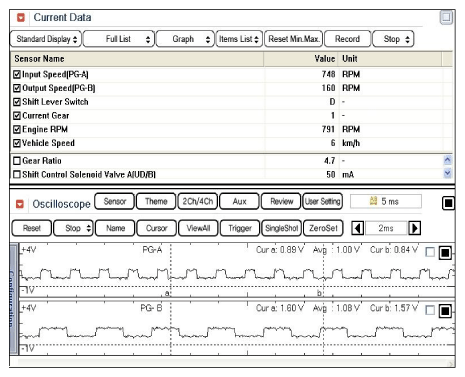

  1. Input/Output speed sensor at low speed

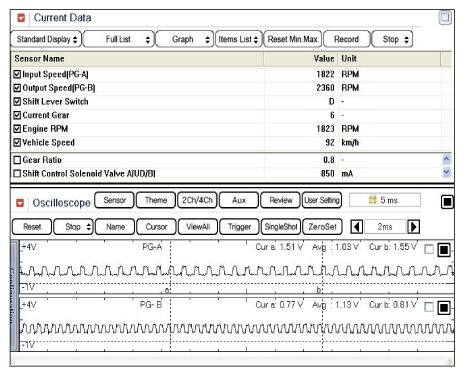

  2. Input/Output speed sensor at high speed
