Circuit Diagram

(M/T)

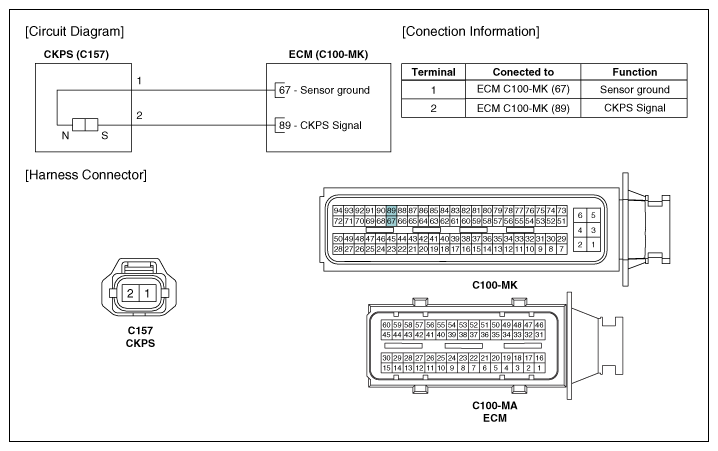

Fig 1: Crankshaft Position Sensor Connector (M/T)
G11950084Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

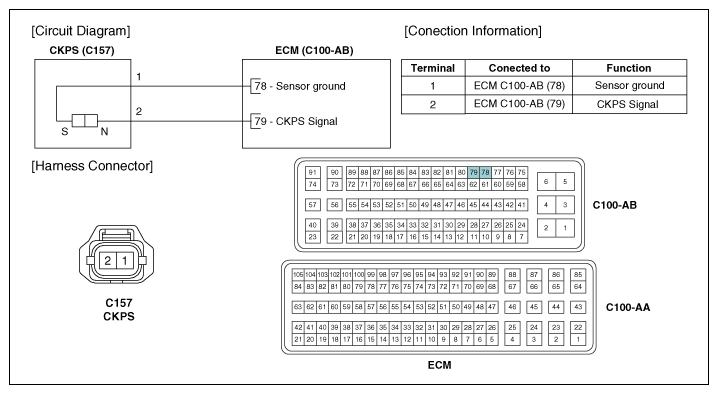

Fig 2: Crankshaft Position Sensor Connector (A/T)
G11950085Courtesy of KIA MOTORS AMERICA, INC.
