Circuit Diagram

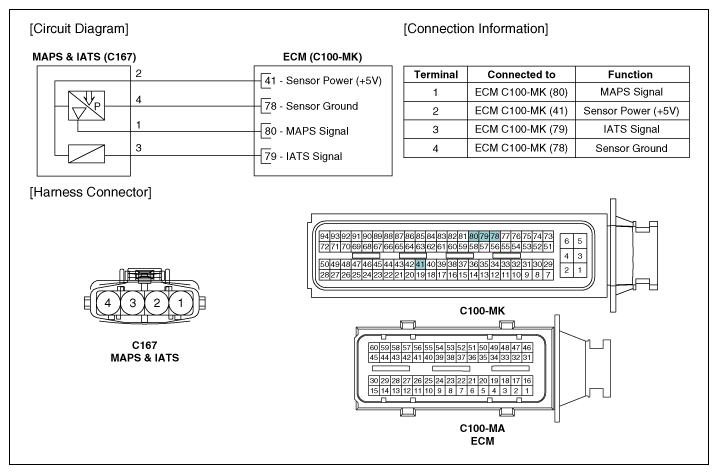

(M/T)

Fig 1: Manifold Absolute Pressure Sensor Connector (M/T)
G11950068Courtesy of KIA MOTORS AMERICA, INC.

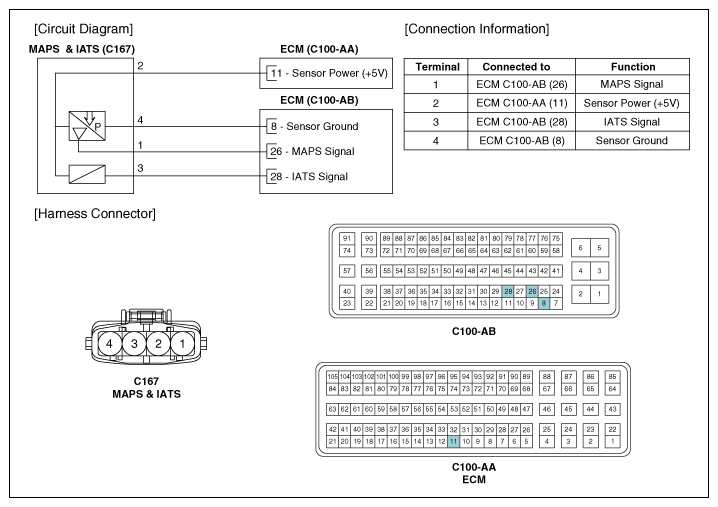

(A/T)

Fig 2: Manifold Absolute Pressure Sensor Connector (A/T)
G11950069Courtesy of KIA MOTORS AMERICA, INC.
