Kia
›
2016
›
Soul Base, Automatic Trans
›
Repair and Diagnosis
›
Accessories & Equipment
›
Communication Devices
›
Cluster Module Diagnosis
›
DTC B1010-55: ESC Present Error - Coding Code Error
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

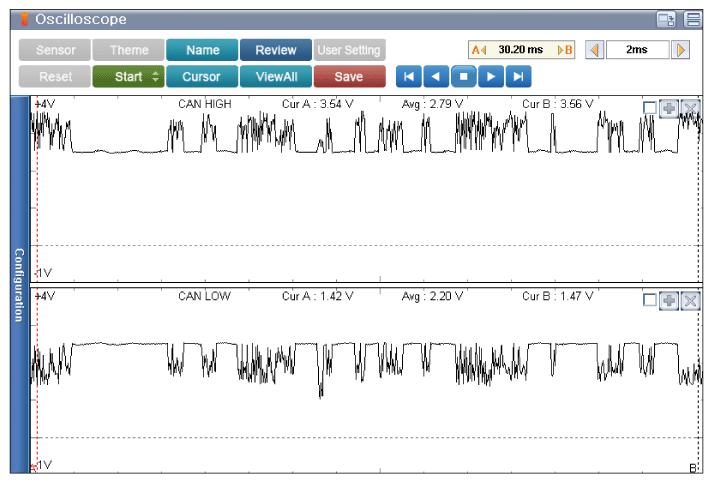

Fig 1: Screen Display - C-CAN Low & High Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.

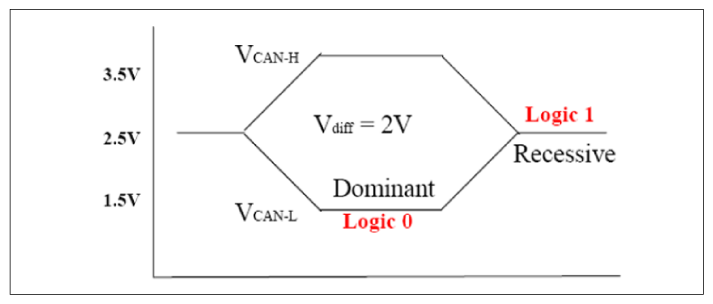

Fig 2: C-CAN BUS Voltage Level (High Speed CAN)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
