Repair Procedures: Replacement

Information

• When removing the clips, use a clip remover.

1. Remove the head lamps.

   (Refer to "HEAD LAMPS .")

2. Remove the A pillar garnish.

   (Refer to "A PILLAR GARNISH .")

3. Remove the side sill moulding.

   (Refer to "SIDE SILL MOULDING .")

4. Using a clip remover, detach the clip, and remove the A pillar guard (A).

   Courtesy of

5. Detach the clips and then remove the insulator pad (A).

   Courtesy of

6. Loosen the front wheel guard mounting screws and bolt.

   Courtesy of

7. Remove the front bumper side bracket (A) after loosening the screw and bolt.

   Courtesy of

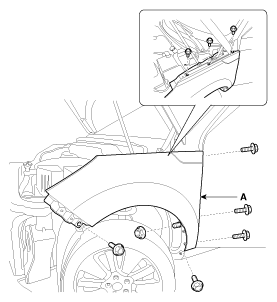

8. After loosening the mounting bolts and nut, then remove the fender assembly (A).

   Courtesy of

9. Install in the reverse order of removal.

   Information

   • Make sure the connector is plugged in properly.
   • Replace any damaged clips.
