Repair Procedures: Replacement

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.

Remove the tail gate trim.
(Refer to "TAIL GATE TRIM .")
Disconnect the back view camera connector (A).

Fig 1: Back View Camera Connector
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the tail gate back panel mounting nuts (A).

Courtesy of

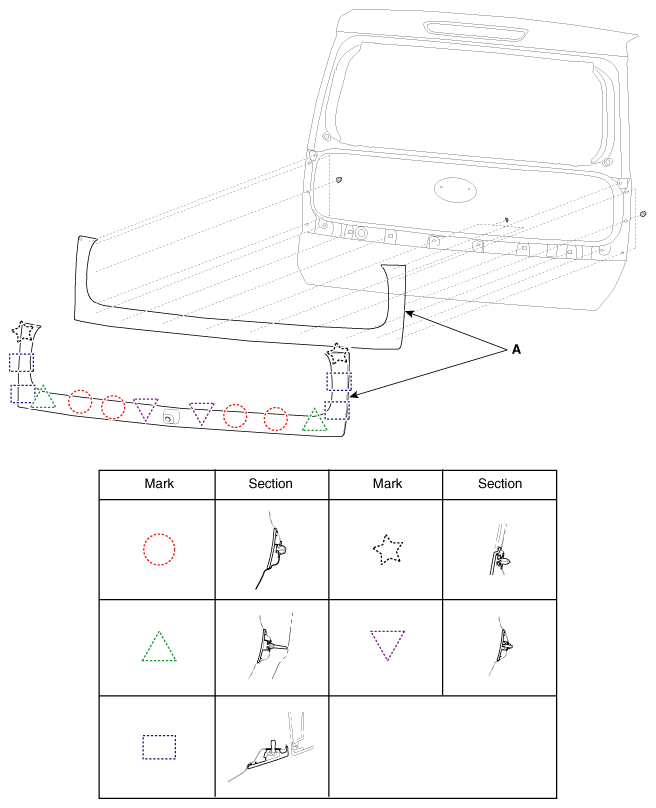

Using a screwdriver or remover, remove the tail gate back panel (A).

Courtesy of
Install in the reverse order of removal.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips.
