FixVault
Home
›
Kia
›
2016
›
Soul Base, Automatic Trans
›
Repair and Diagnosis
›
Drivelines & Axles
›
Axle Shafts
›
Driveshaft Assembly
›
TJ Joint
›
Components And Components Location
›
Components
›
LH
Components And Components Location: Components: LH

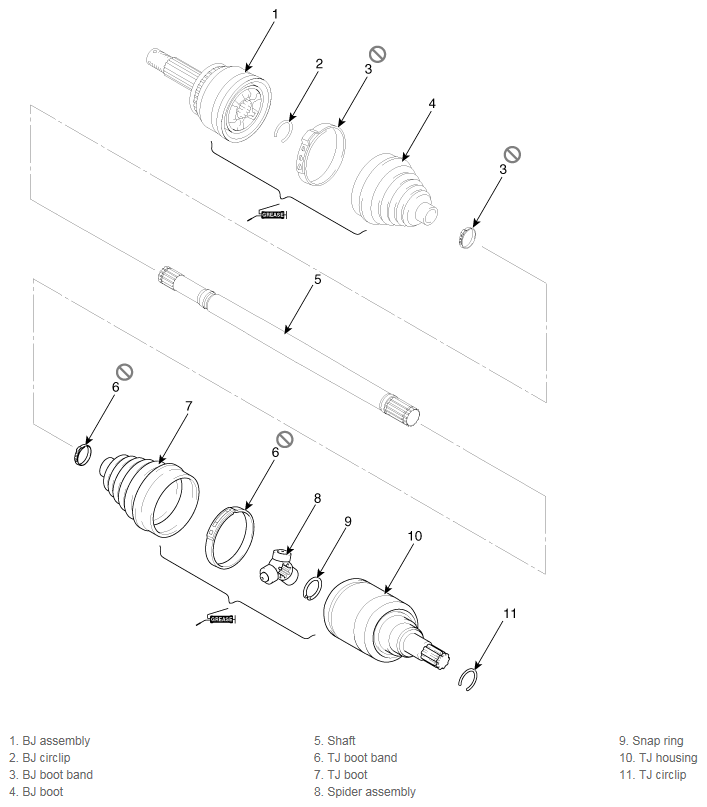

Fig 1: TJ Joint Exploded View LH
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
