Home › Kia › 2016 › Soul Base, Automatic Trans › Repair and Diagnosis › Engine Mechanical › Auxiliary Emission Control Systems › Evaporative Emission Control System › Schematic Diagram › Notes

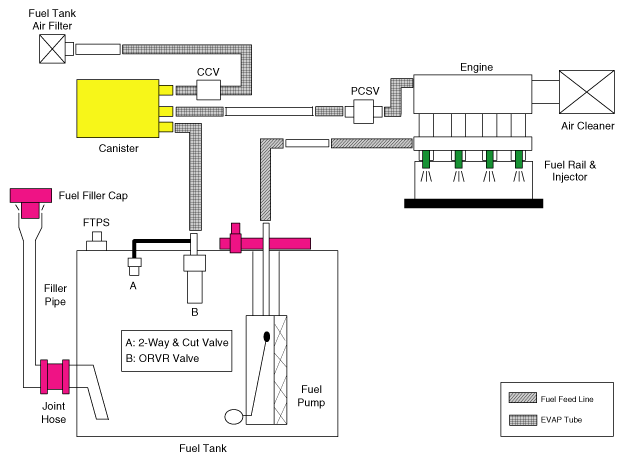

Schematic Diagram: Notes

G11949996Courtesy of
