Components And Components Location: Components

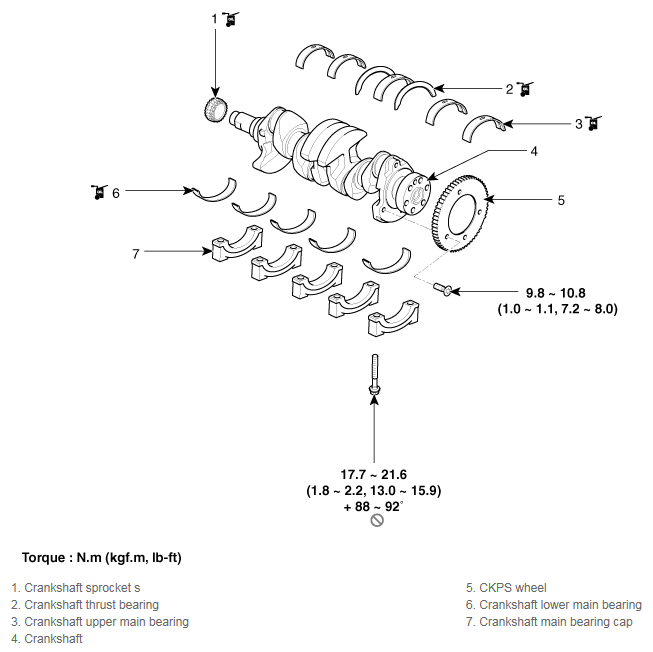

Fig 1: Crankshaft Exploded View With Torque Specifications
G11949666Courtesy of KIA MOTORS AMERICA, INC.
