Kia
›
2016
›
Soul Base, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 1.6L
›
Accelerator Position Sensor (APS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

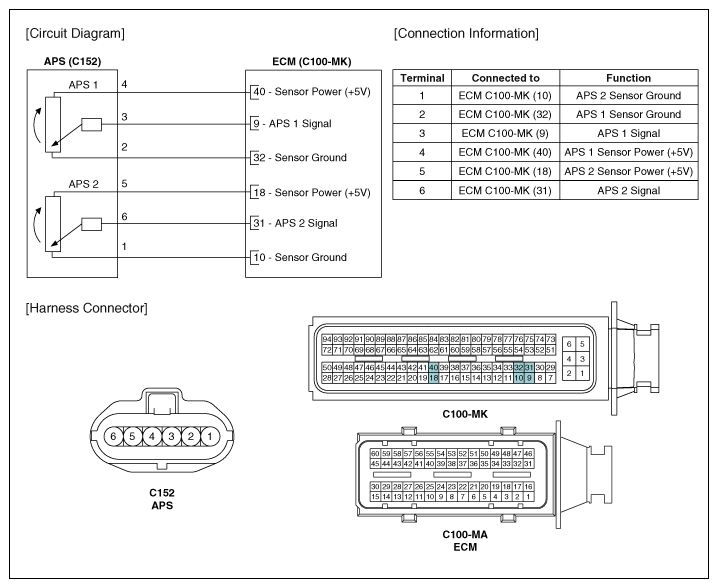

(M/T)
Fig 1: Accelerator Position Sensor Connectors (M/T)
Courtesy of KIA MOTORS AMERICA, INC.

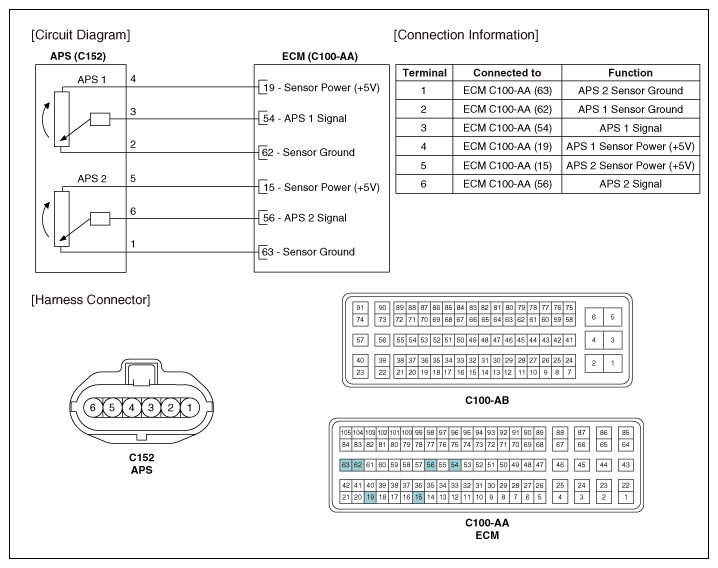

(A/T)
Fig 2: Accelerator Position Sensor Connectors (A/T)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
