Engine Control System - 1.6L
›
CVVT Oil Control Valve (OCV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

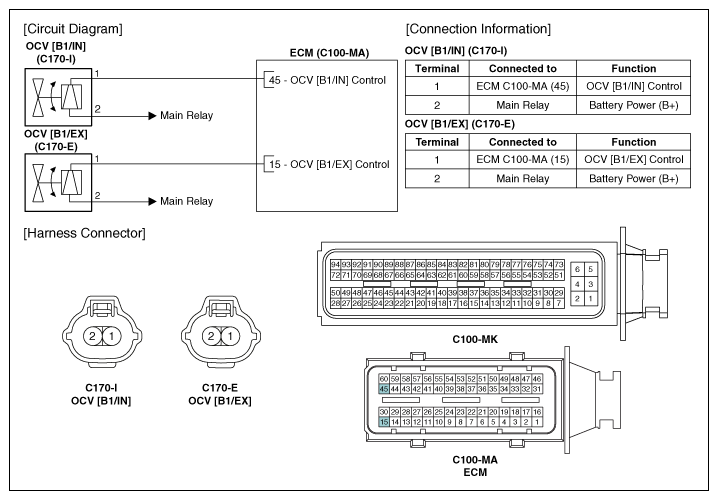

(M/T)
Fig 1: CVVT Oil Control Valve Connector (M/T)
Courtesy of KIA MOTORS AMERICA, INC.

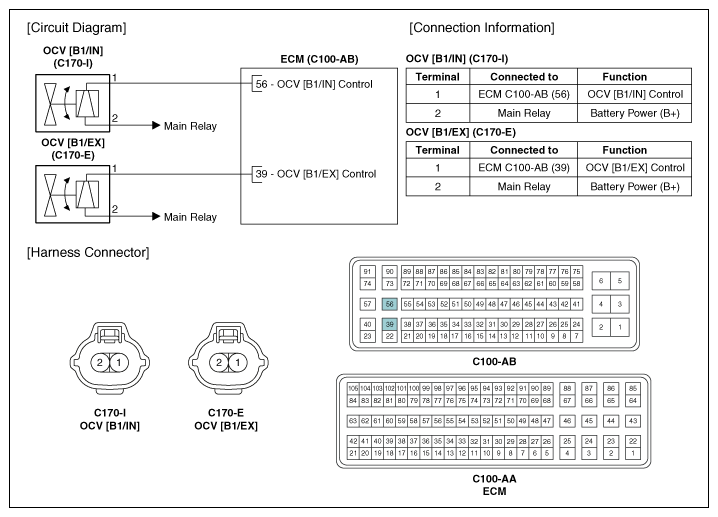

(A/T)
Fig 2: CVVT Oil Control Valve Connector (A/T)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
