Circuit Diagram

(M/T)

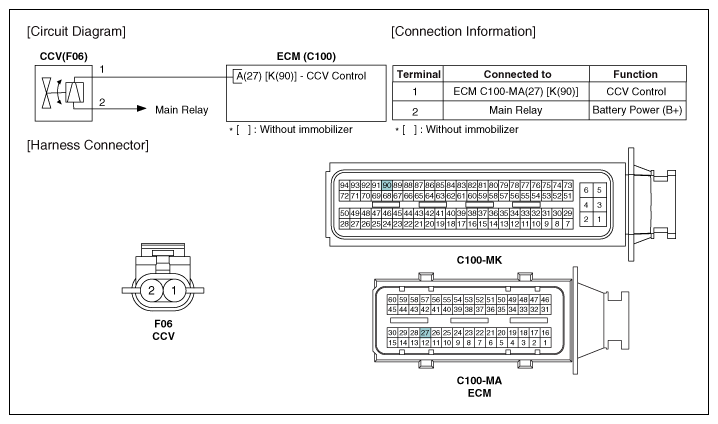

Fig 1: Canister Close Valve Connector (M/T)
G11950161Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

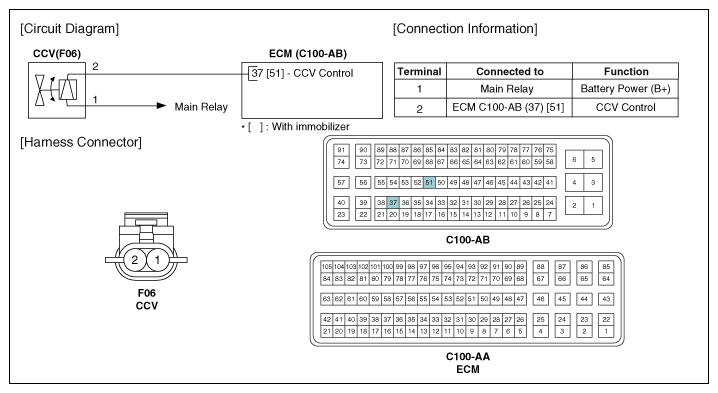

Fig 2: Canister Close Valve Connector (A/T)
G11950162Courtesy of KIA MOTORS AMERICA, INC.
