Circuit Diagram

(M/T)

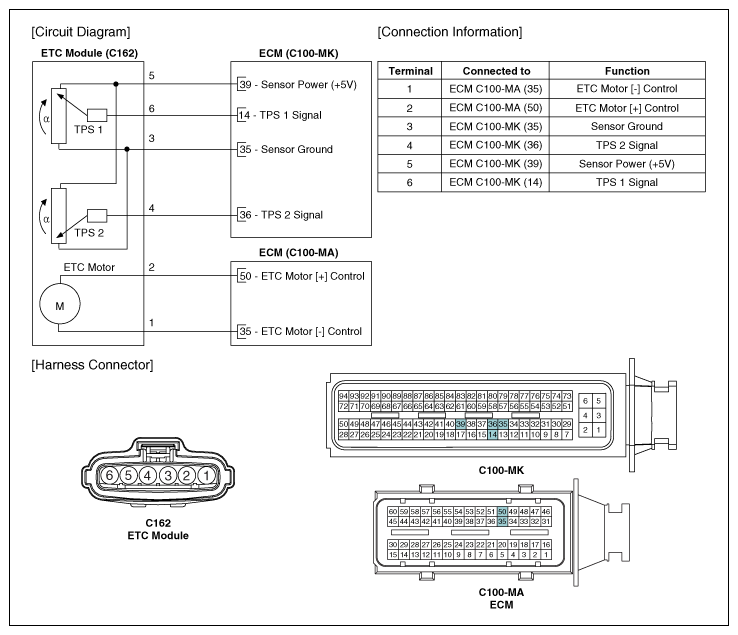

Fig 1: Electronic Throttle Control System Connector (M/T)
G11950062Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

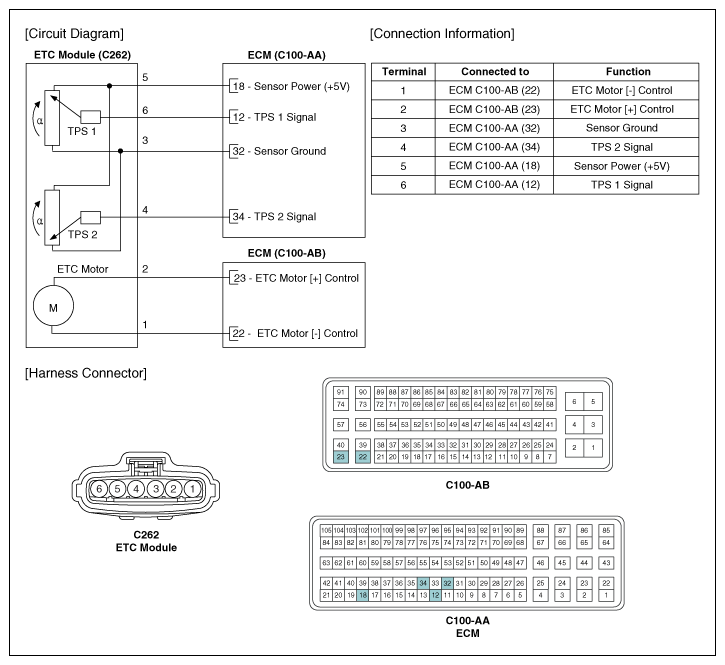

Fig 2: Electronic Throttle Control System Connector (A/T)
G11950063Courtesy of KIA MOTORS AMERICA, INC.
