Circuit Diagram

(M/T)

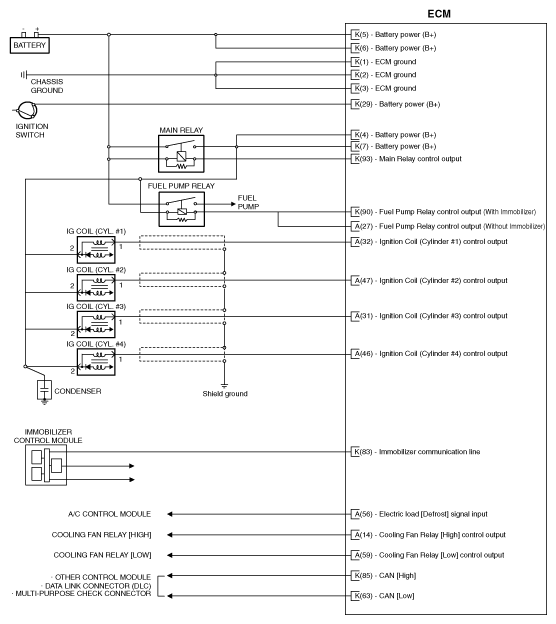

G11950048Courtesy of

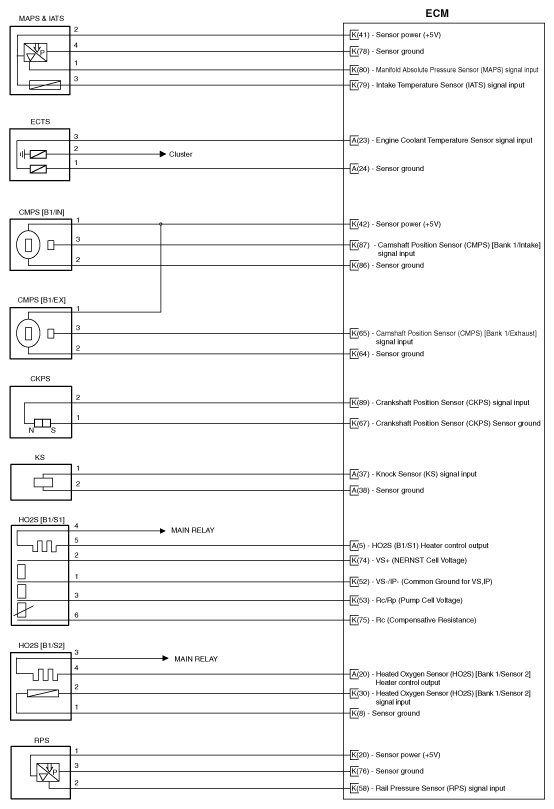

G11950049Courtesy of

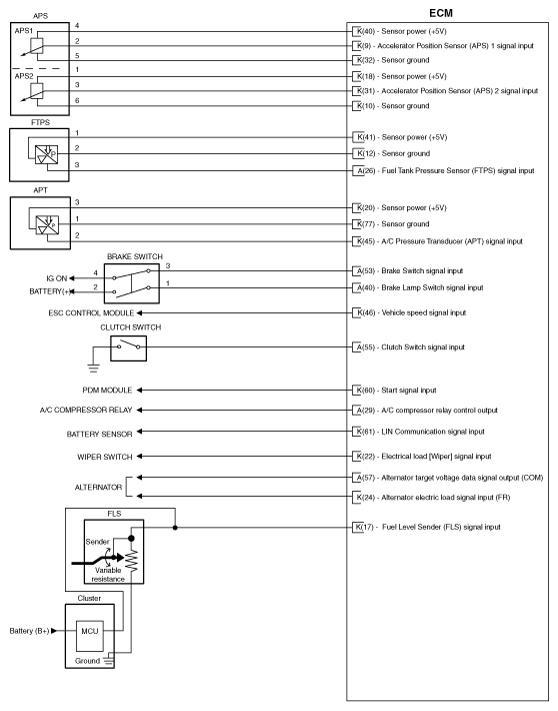

G11950050Courtesy of

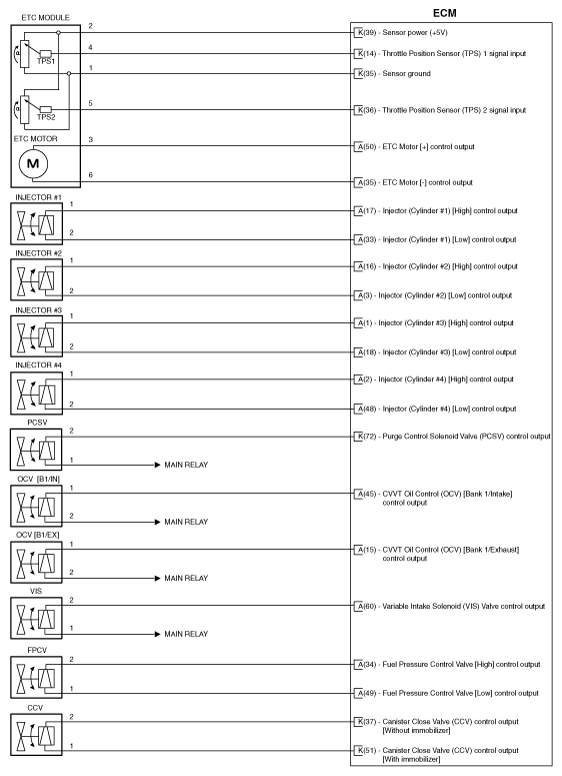

G11950051Courtesy of

(A/T)

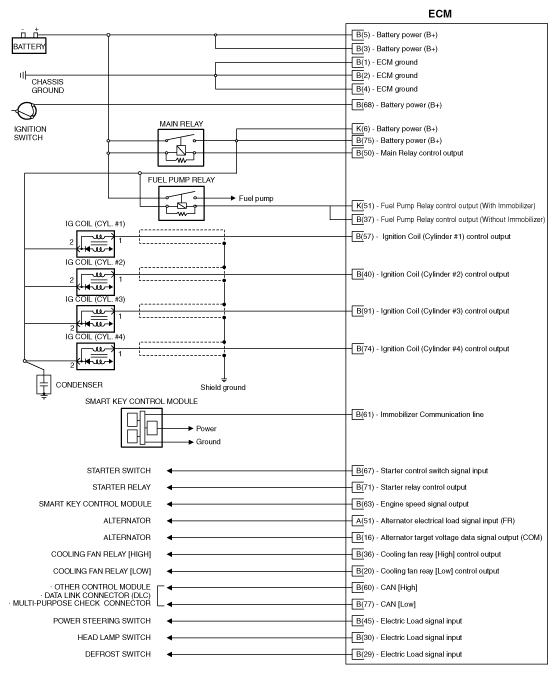

G11950052Courtesy of

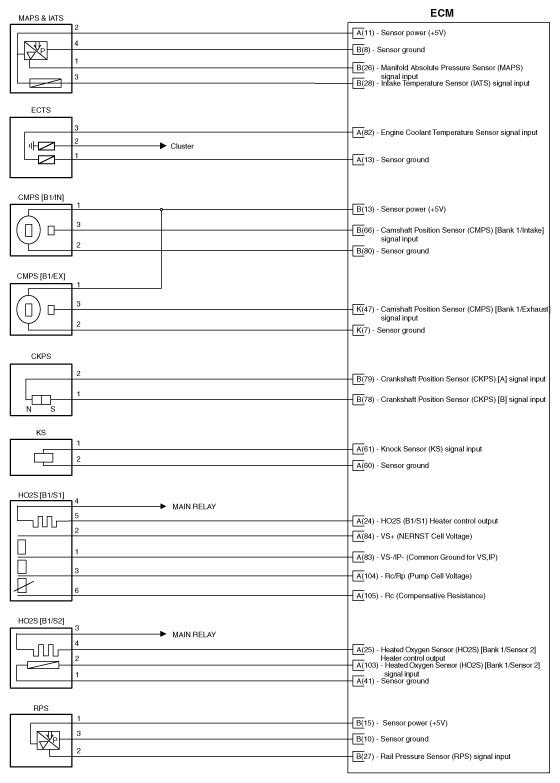

G11950053Courtesy of

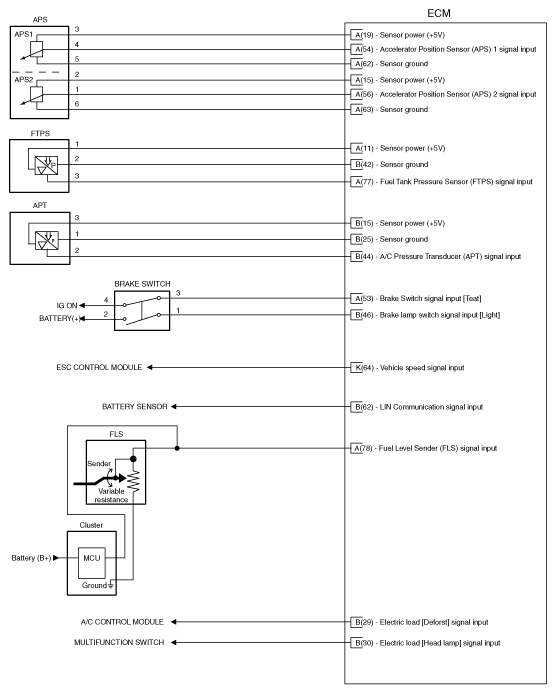

G11950054Courtesy of

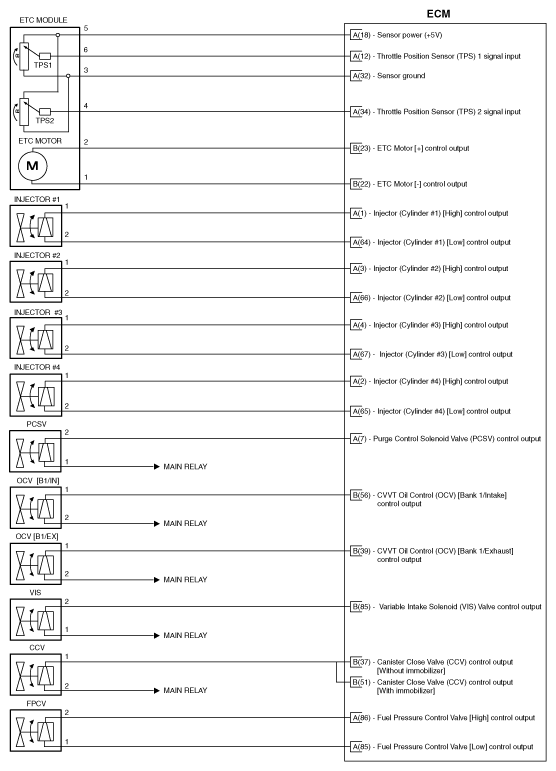

G11950055Courtesy of
