Circuit Diagram

(M/T)

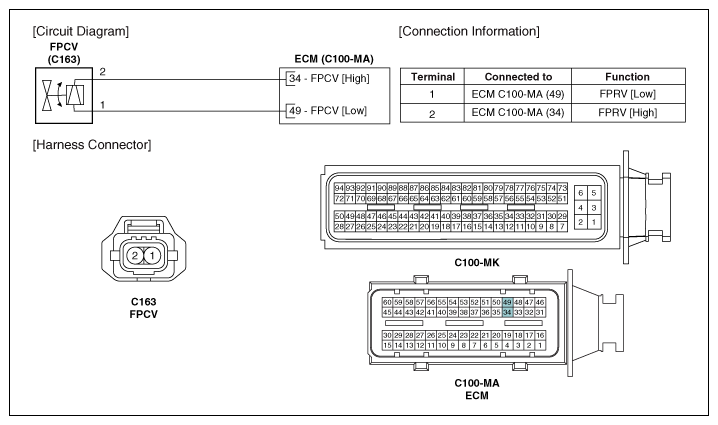

Fig 1: Fuel Pressure Control Valve Connector (M/T)
G11950158Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

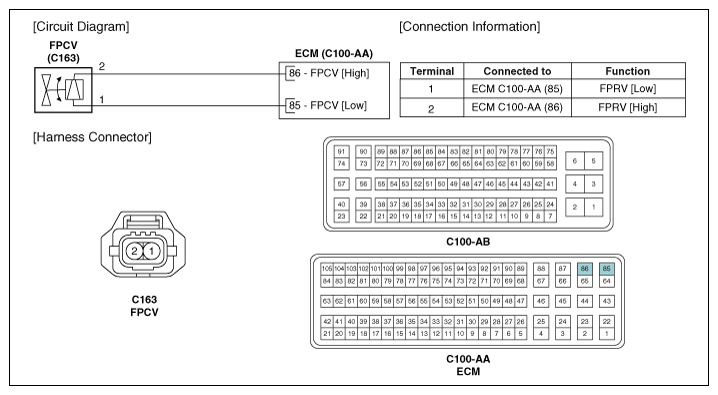

Fig 2: Fuel Pressure Control Valve Connector (A/T)
G11950159Courtesy of KIA MOTORS AMERICA, INC.
