Engine Control System - 1.6L
›
Fuel Tank Pressure Sensor (FTPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram
(M/T)

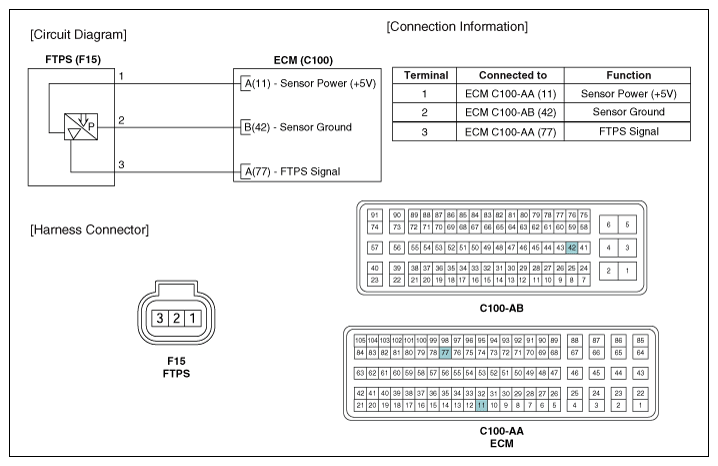

Fig 1: Fuel Tank Pressure Sensor Connector (M/T)
Courtesy of KIA MOTORS AMERICA, INC.
(A/T)

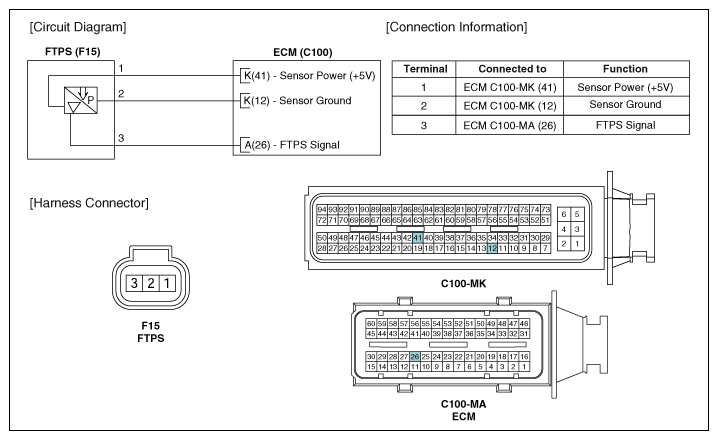

Fig 2: Fuel Tank Pressure Sensor Connector (A/T)
Courtesy of KIA MOTORS AMERICA, INC.
