Home › Kia › 2016 › Soul Base, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Heated Oxygen Sensor (HO2S) › Schematic Diagrams › Circuit Diagram

Circuit Diagram

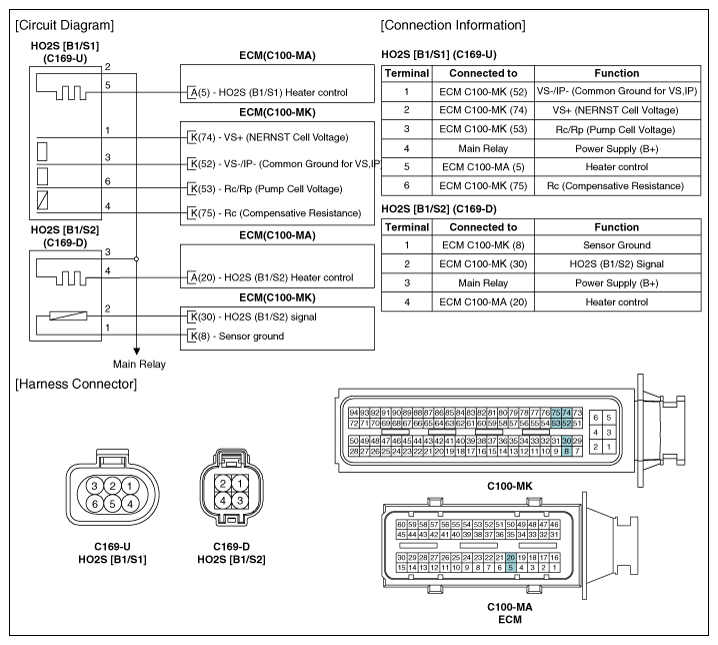

(M/T)

Fig 1: Heated Oxygen Sensor Connector (M/T)
G11950103Courtesy of KIA MOTORS AMERICA, INC.

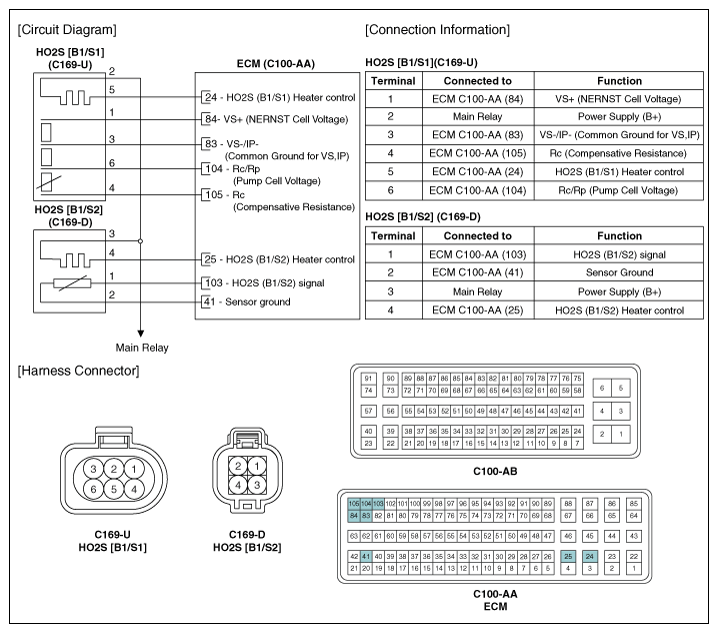

(A/T)

Fig 2: Heated Oxygen Sensor Connector (A/T)
G11950104Courtesy of KIA MOTORS AMERICA, INC.
