Circuit Diagram

(M/T)

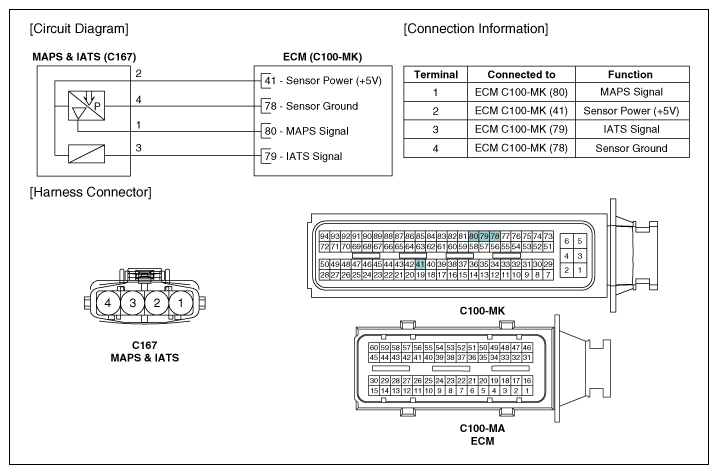

Fig 1: Intake Air Temperature Sensor Connector (M/T)
G11950072Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

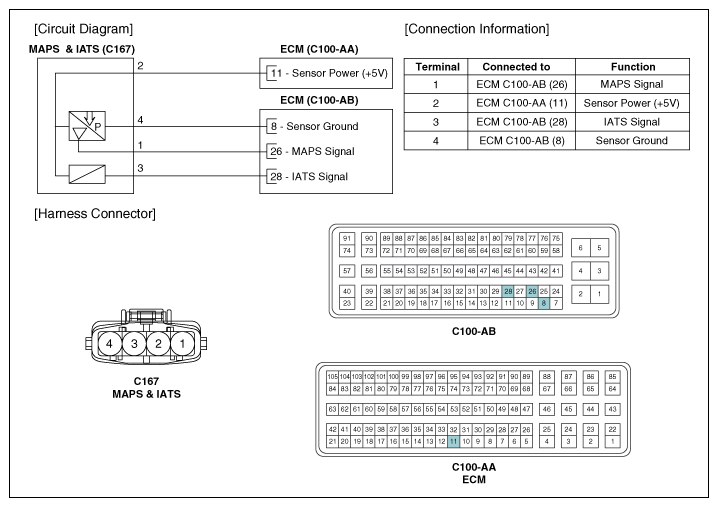

Fig 2: Intake Air Temperature Sensor Connector (A/T)
G11950073Courtesy of KIA MOTORS AMERICA, INC.
