Circuit Diagram

(M/T)

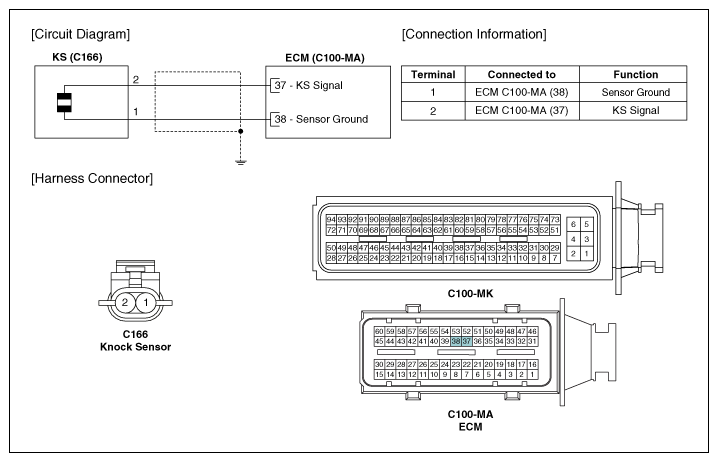

Fig 1: Knock Sensor Connector (M/T)
G11950095Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

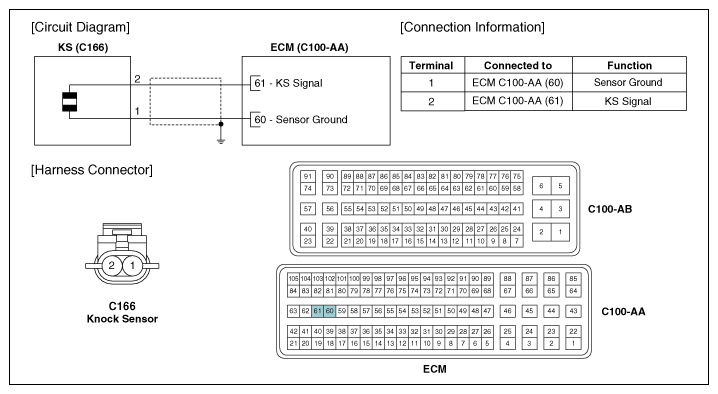

Fig 2: Knock Sensor Connector (A/T)
G11950096Courtesy of KIA MOTORS AMERICA, INC.
