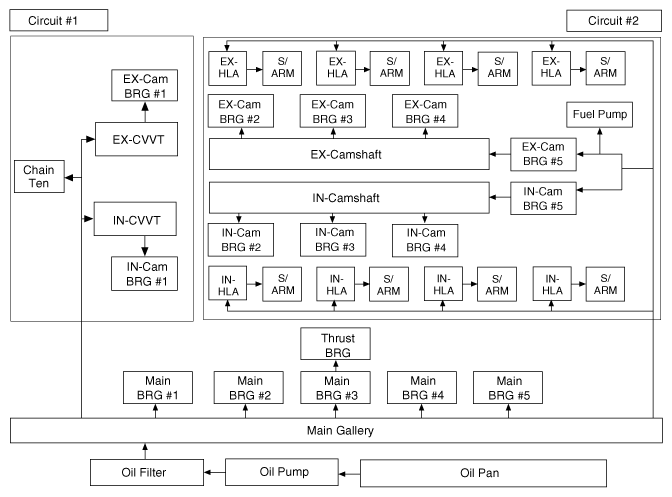

Engine Oil Schematics

WARNING: This page is about a different variant/trim than selected.
G11954648Courtesy of
