Special Service Tools
AUTOMATIC TRANSAXLE SYSTEM SPECIAL SERVICE TOOLS
| Tool Name/Number | Illustration | Description |
|---|---|---|

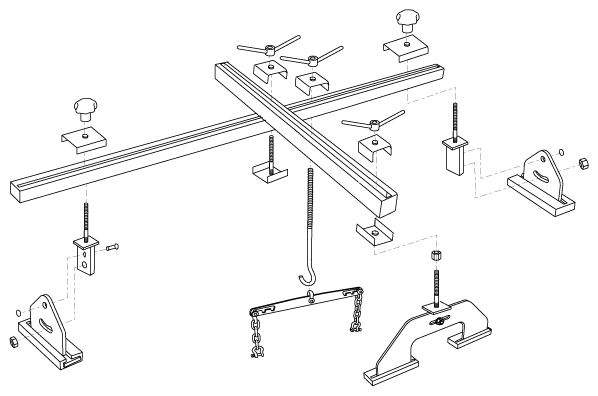

| Engine support fixture (bar) 09200-3N000 |
Used for holding engine assembly when removing/installing transaxle Used with the adapter (09200-4X000) and supporter (09200-2S000) |
|
| Engine support fixture (supporter) A: 09200-2S000 B: 09200-2S100 C: 09200-2S200 |
Used for holding engine assembly when removing/installing transaxle Used with the bar (09200-3N000) and adapter (09200-4X000) |
|
| Engine support fixture (adapter) 09200-4X000 |
Used for holding engine assembly when removing/installing transaxle Used with the bar (09200-3N000) and supporter (09200-2S000) |
|
| Oil seal installer A: 09452-26100 (Installer) B: 09231-H1100 (Handle) |
||
| Inhibitor switch guide pin 09480-A3800 |
