Components And Components Location: Components

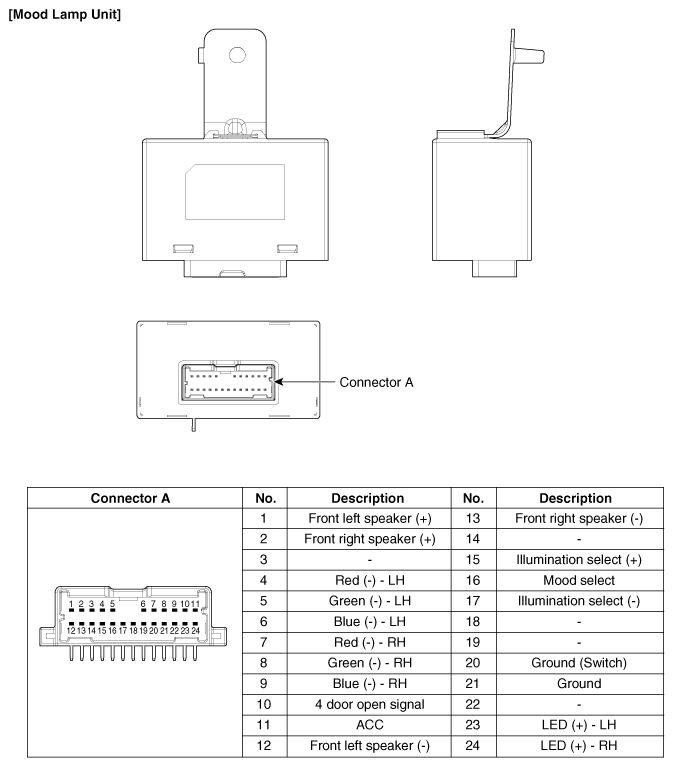

Fig 1: Mood Lamp Connectors (1 Of 2)
G11952383Courtesy of KIA MOTORS AMERICA, INC.

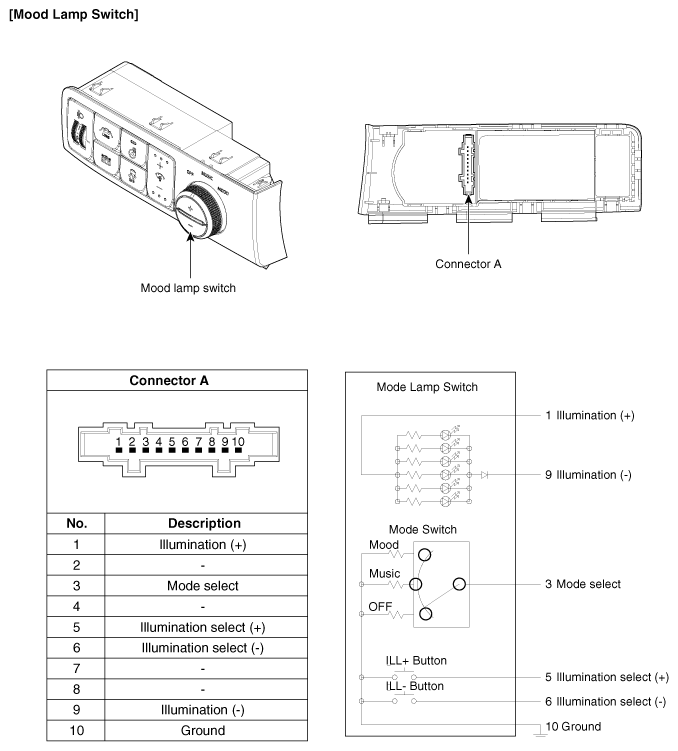

Fig 2: Mood Lamp Connectors (2 Of 2)
G11952384Courtesy of KIA MOTORS AMERICA, INC.
