Components And Components Location: Components

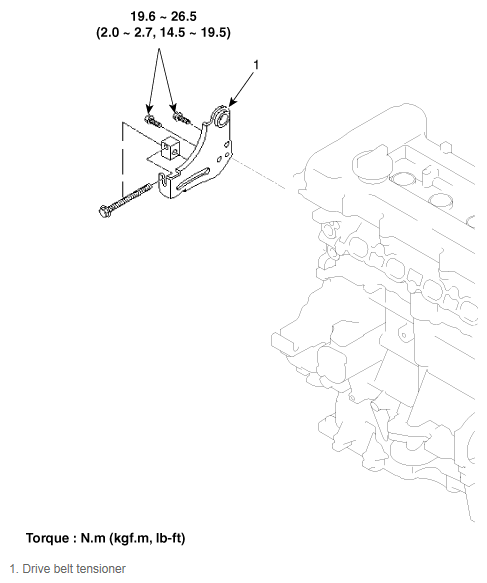

Fig 1: Drive Belt Tensioner With Torque Specifications
G11949865Courtesy of KIA MOTORS AMERICA, INC.
