Heated Steering Wheel
›
Schematic Diagrams
›

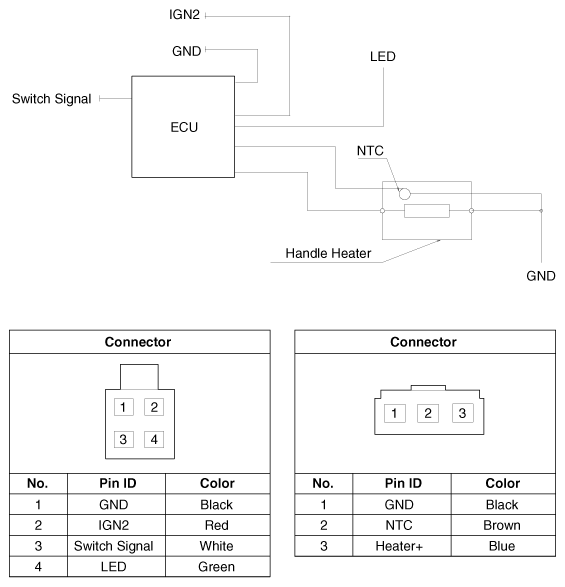

System Circuit Diagram
System Circuit Diagram
Fig 1: Steering Wheel Connector
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
