Auxiliary 12V Battery: Troubleshooting

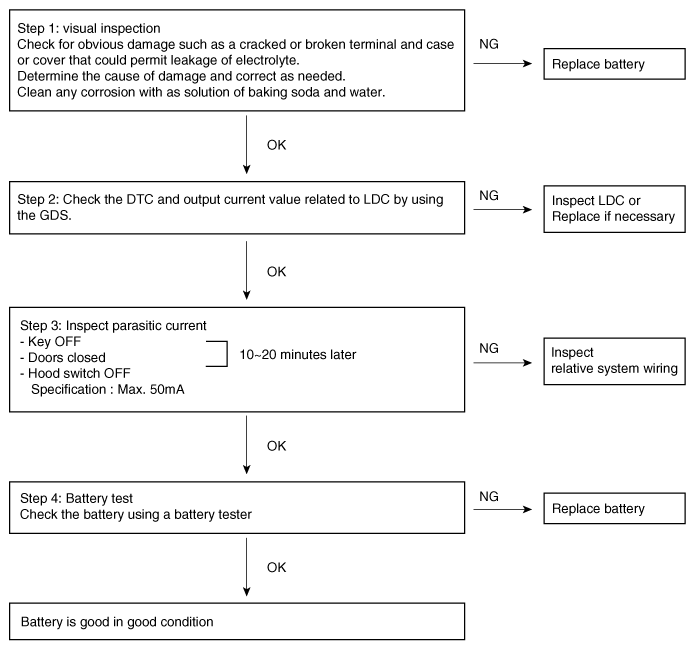

Fig 1: Battery Troubleshooting Flowchart
G11941548Courtesy of KIA MOTORS AMERICA, INC.
