Engine Control System Diagnosis (4 Of 6)
›
DTC P0523-00: Engine Oil Pressure Sensor/Switch High
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

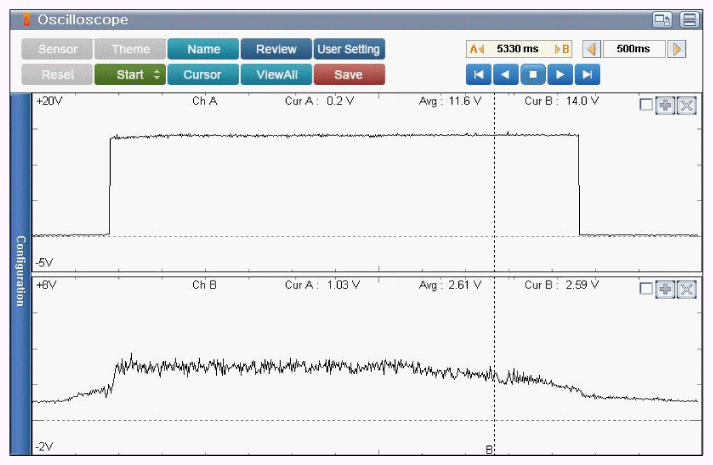

Fig 1: Scantool Display - Oil Pressure Control Valve, Oil Pressure Sensor Waveform At Acceleration
Courtesy of KIA MOTORS AMERICA, INC.
