Components And Components Location: Components

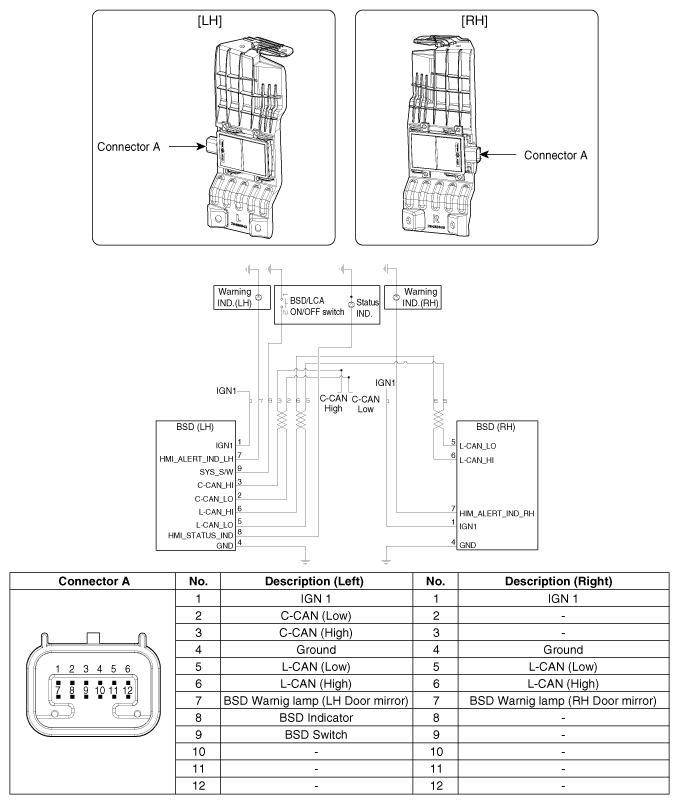

Fig 1: Blind Spot Detection Unit Circuit Diagram And Connector End View
G12298327Courtesy of KIA MOTORS AMERICA, INC.
