Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the Integrated Gateway & Power Control Module (IGMP).
(Refer to Fuses And Relays - "RELAY BOX (PASSENGER COMPARTMENT) ")

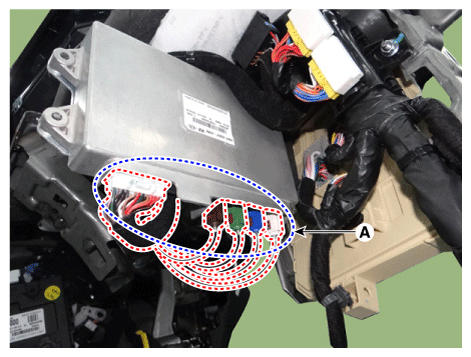

Disconnect the SVM unit connectors (A).

Fig 1: Locating SVM Unit Connectors
Courtesy of KIA MOTORS AMERICA, INC.

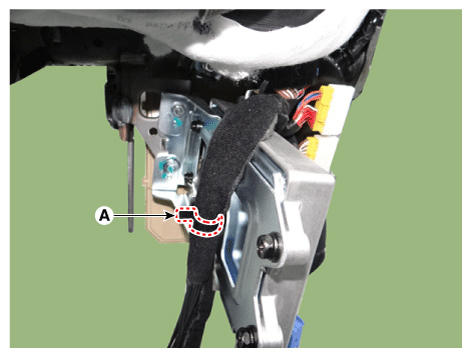

Remove the SVM unit mounting clip (A).

Fig 2: Removing SVM Unit Mounting Clip
Courtesy of KIA MOTORS AMERICA, INC.

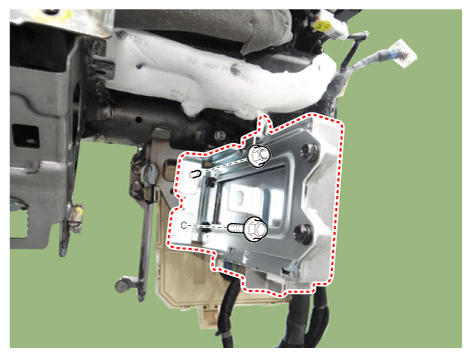

Remove the SVM unit (A) after loosening the mounting bolt and nut.

Fig 3: Removing SVM Unit Mounting Bolt And Nut

Courtesy of KIA MOTORS AMERICA, INC.
