Repair Procedures: Removal: Notes

  1. Disconnect the negative (-) battery terminal.
  2. Remove the two mounting screws.

    And then remove the overhead console (A).

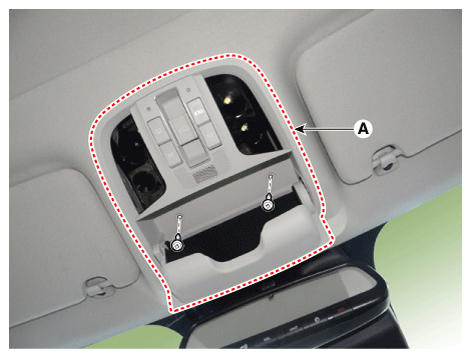

    Fig 1: Locating Overhead Console With Screws
    G12298688Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the overhead console after disconnecting the connectors (A).

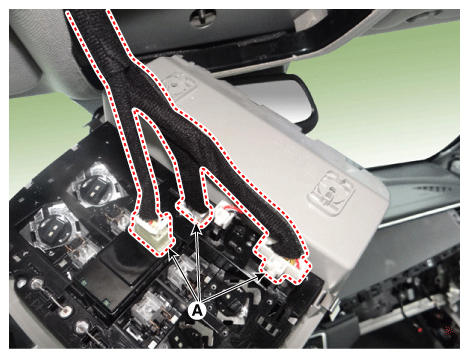

Fig 2: Locating Overhead Console Connectors
G12298689Courtesy of KIA MOTORS AMERICA, INC.
