Repair Procedures: Removal: Notes

1. Disconnect the negative (-) battery terminal.

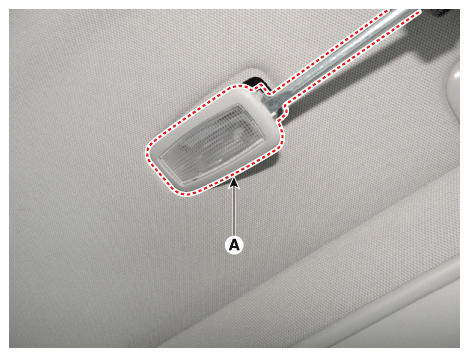

2. Detach the vanity lamp (A) using a flat-tip screwdriver.
   Fig 1: Detach Vanity Lamp Using Flat-Tip Screwdriver

   Courtesy of KIA MOTORS AMERICA, INC.

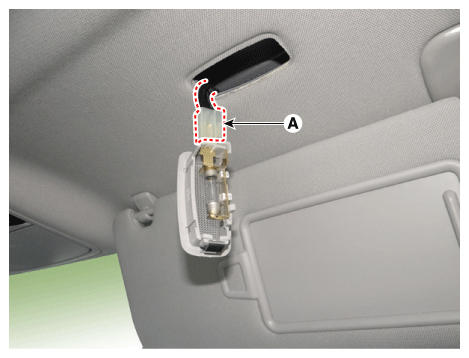

3. Disconnect the vanity lamp connector (A)

Fig 2: Locating Vanity Lamp Connector

Courtesy of KIA MOTORS AMERICA, INC.
