Multifunction Switch Inspection

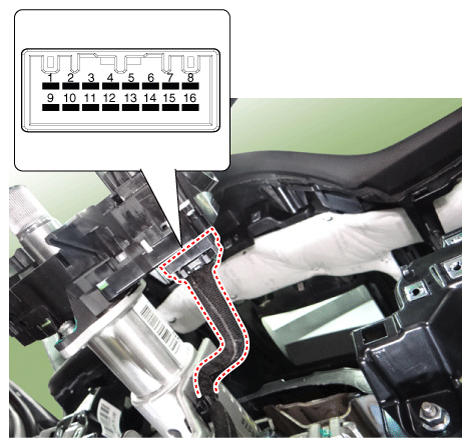

- Check for continuity between the terminals in each switch position according to the table.
| Switch | Switch position | Switch terminal | Resistance (Ω, ±1.0%) |
|---|---|---|---|
| Wiper switch | MIST | 9-1 | 330 |
| OFF | ∞ | ||
| Intermittent (AUTO) | 800 | ||
| LOW | 1, 800 | ||
| HIGH | 5, 700 | ||
| Wiper intermittent volume | Volume 1 | 9-7 | 330 |
| Volume 2 | 690 | ||
| Volume 3 | 1, 310 | ||
| Volume 4 | 2, 610 | ||
| Volume 5 | 7, 310 |
