Interior 2 Antenna

Disconnect the negative (-) battery terminal.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
Remove the interior 2 antenna (A) after loosening the mounting nuts and disconnecting the connector.

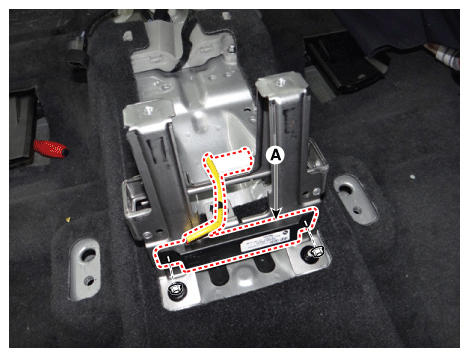

Fig 1: Locating Interior 2 Antenna With Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
