Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or using a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

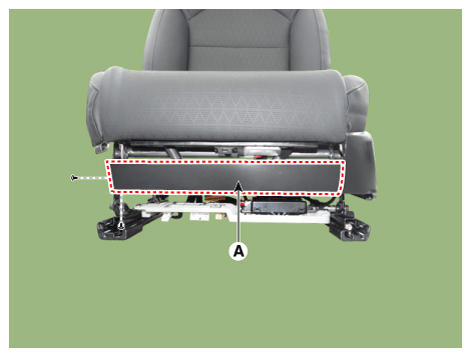

Remove the front seat forward extension cover (A).

Fig 1: Locating Front Seat Forward Extension Cover
Courtesy of KIA MOTORS AMERICA, INC.

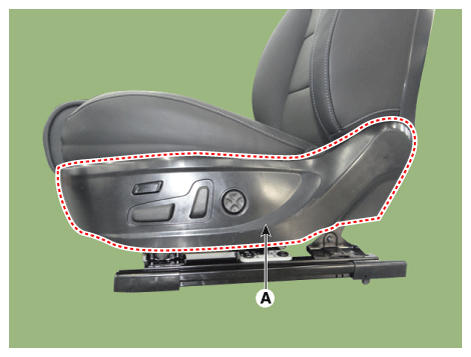

Remove the front seat outer shield cover (A) by using a remover.
NOTE: Be careful not to damage the mounting bracket and hook when removing the cover.

Fig 2: Locating Front Seat Outer Shield Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the front seat power switch connector (A).

Fig 3: Locating Front Seat Power Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Make sure that the connectors are plugged in properly.
