Schematic Diagram
›
EPB Applied
EPB Applied

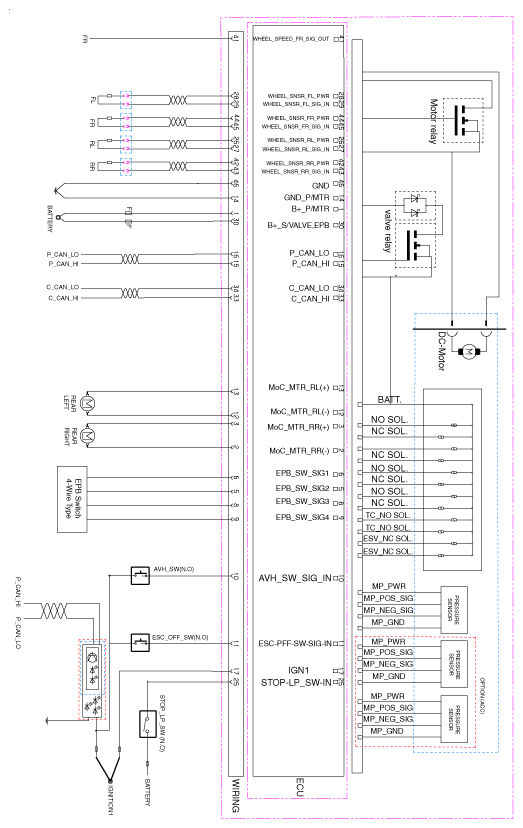

Fig 1: Electronic Stability Program System Schematic Diagram (EPB Applied)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
