Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

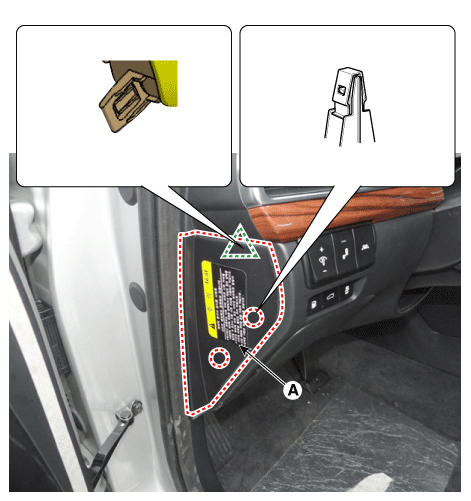

1. Using a remover, remove the crash pad side cover [LH] (A).
   Fig 1: Locating Crash Pad Side Cover (LH)

   Courtesy of KIA MOTORS AMERICA, INC.

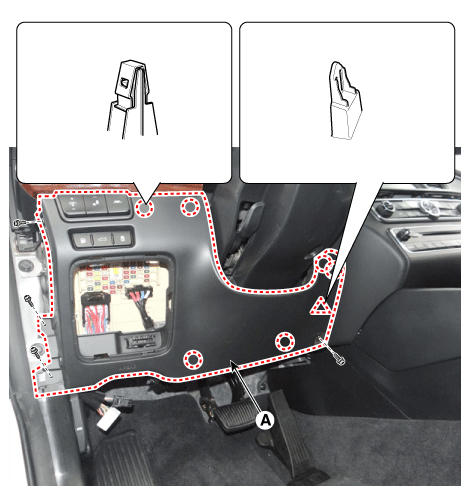

2. Remove the crash pad lower panel (A) after loosening the screw.
   Fig 2: Locating Crash Pad Lower Panel With Screw & Clips

   Courtesy of KIA MOTORS AMERICA, INC.
3. Disconnect the crash pad lower panel connector (A) and (B).

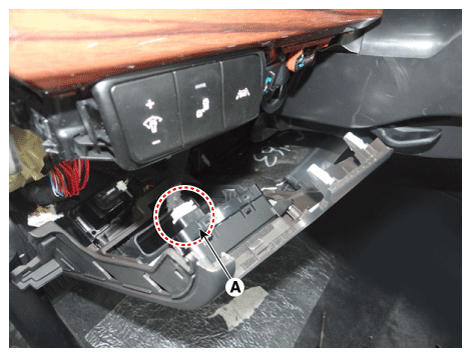

   Fig 3: Locating Crash Pad Lower Panel Connector (1 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.

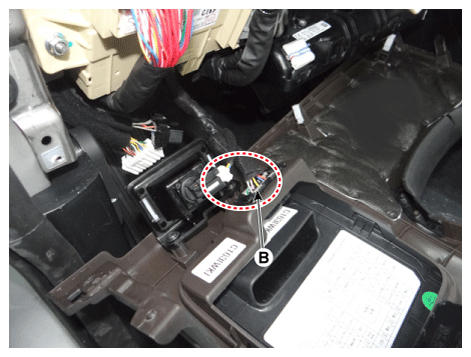

   Fig 4: Locating Crash Pad Lower Panel Connector (2 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.
4. Install in the reverse order of removal.

   Information

   • Make sure the connector are connected in properly.
   • Replace any damaged clips.
