Repair Procedures: Removal

  1. Remove the LH/RH cylinder head assembly and gasket.

    (Refer to Cylinder Head Assembly - "CYLINDER HEAD ")

  2. Remove the water jacket separator #1 (A), #2 (B).

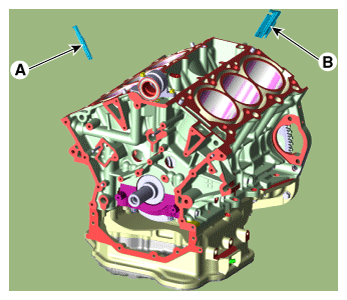

Fig 1: Removing Water Jacket Separator
G12287804Courtesy of KIA MOTORS AMERICA, INC.
