Components And Components Location: Components

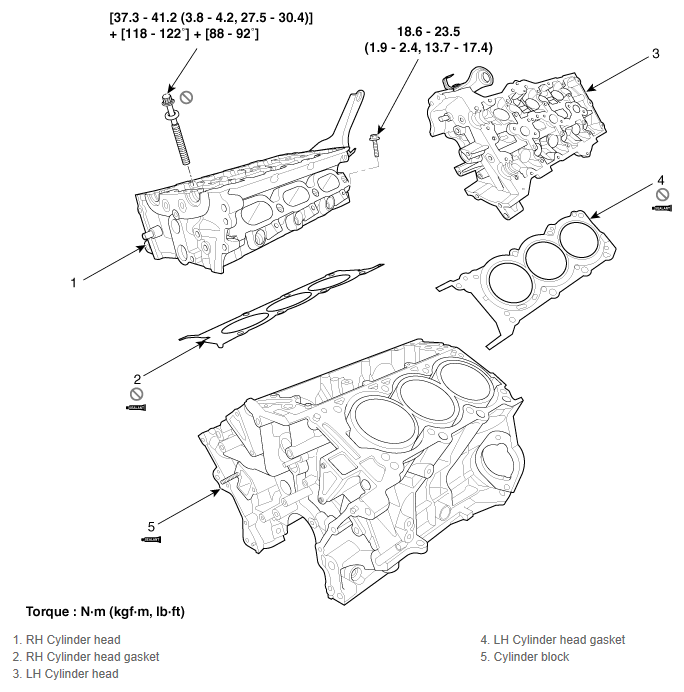

Fig 1: Cylinder Head Components With Torque Specification
G12287942Courtesy of KIA MOTORS AMERICA, INC.
