Crankshaft Position Sensor (CKPS)
›
Troubleshooting
›
Signal Waveform
Signal Waveform

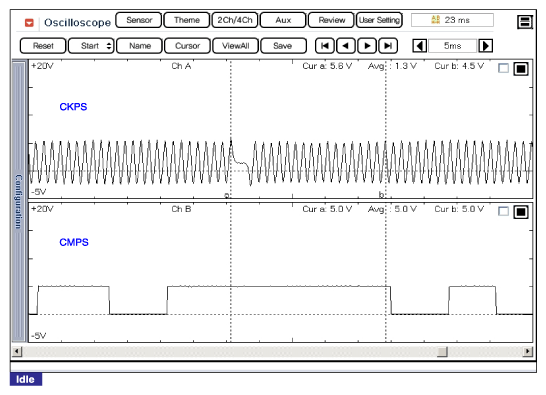

Fig 1: Screen Display - Crankshaft Position Sensor Signal Waveform (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

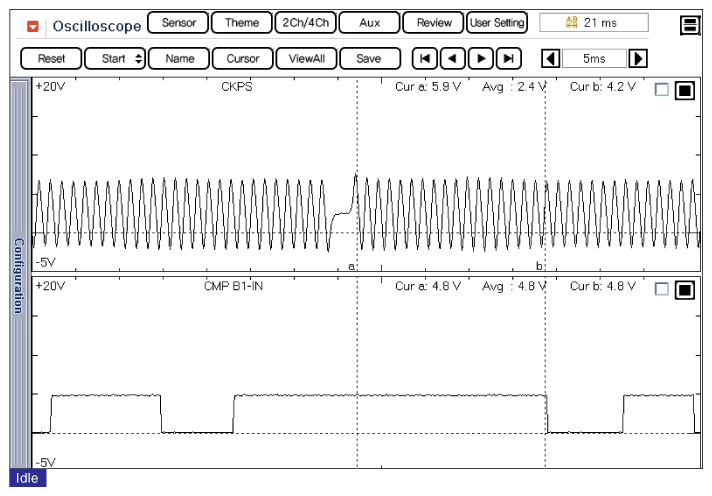

Fig 2: Screen Display - Crankshaft Position Sensor Signal Waveform (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
